Silverstone SST-CPL02-E CPL02-E 8-in-1 Addressable RGB Hub
Model
SST-CPL02-E
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | In Stock |
West Melbourne (Pickup) | In Stock |
Special Price $42.00 Regular Price $48.50

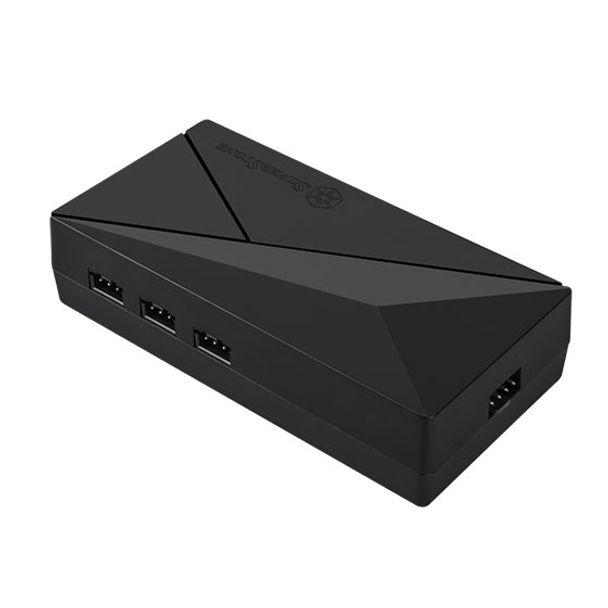

Silverstone CPL02-E 8-in-1 Addressable RGB Hub
CPL02-E
￭ Supports up to 8 addressable RGB light strips or devices.
￭ Compatible with addressable RGB controller or supported motherboard.
￭ Supports light strips up to 5V 9A
Colorful world starts from here
8-in-1 addressable RGB hub
For those looking to add lots of addressable RGB fans or light strips, CPL02-E supports up to 8 addressable RGB light strips or devices
Motherboard or ARGB controller is your palette
SATA power adapter cable
SATA power adapter cable provides more convenience along with plenty of stable power to drive addressable RGB devices
Compatible with addressable RGB standards
Cables included allow for connection of SilverStone or standard addressable RGB devices
| Motherboard RGB default mode description | |
|---|---|
| ASROCK | When RGB devices are connected without software, some models will display single color while others will default to multi-color animation display. |
| ASUS | When RGB devices are connected without software, they will default to multi-color demo mode. |
| BIOSTAR | When RGB devices are connected without software, they will default to blue color display. |
| Gigabyte | When RGB devices are connected without software, some models will display single color while others will default to multi-color animation display. |
| MSI | When RGB devices are connected without software, they will default to single color display. |
Connection example
Addressable RGB connector on motherboard
CPL02-E in PC
Addressable RGB cable
SATA power cable
SPECIFICATIONS
| Model No. | SST-CPL02-E |
| Material | Plastic Shell |
| Included Parts | Standard addressable RGB 3pin + 4-1pin x 8 SATA power cable x 1 Input signal cable x 1 |
| Signal input | Standard addressable RGB 3Pin + 5V, D, G* Motherboard addressable RGB 4pin + 5V, D, NP, G* |
| Signal output | Standard addressable RGB 3pin + 4-1pin x 8 |
| Power Input | SATA 15pin |
| Output limitation (each channel) | 5V 9A (4.5A+4.5A)** |
| Dimension | 103mm (L) x 52mm (W) x 27mm (H) 4.06" (L) x 2.05" (W) x 1.06" (H) |
| Weight | 62 g |
| Remark : |
|
* Please check the signal source’s control box and pin header that you want to connect is the same as CPL02-E’s pin definition.
** The power output circuits for ports on the left and the right side are independent, please ensure to evenly distribute power draw when connecting devices.
|
| GTIN | 4710007228548 |
|---|
