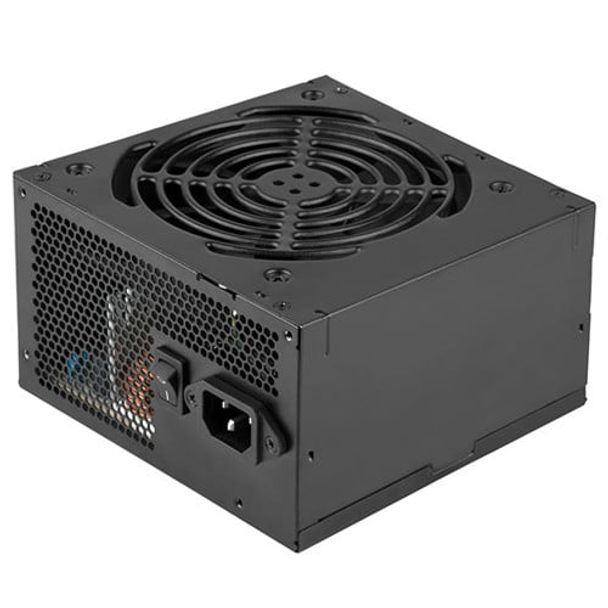

SilverStone Essential ET750-G Gold 750W Power Supply SST-ET750-G
| Location | Availability |
|---|---|
Online (Delivery) | End of Life |
Notting Hill (Pickup) | End of Life |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
SilverStone created the Essential Gold series power supplies to provide enthusiasts with affordable, but highly efficient choices when building PCs. ET550-G, ET650-G, and ET750-G have 80 PLUS Gold efficiency with single +12V rail and the ability to provide 24/7 40℃continuous power output. In addition, they are equipped with 120mm silent fan and all-black flat cables for quiet operation and easier cable management respectively. Even high-end systems with high level graphics cards can be powered easily and efficiently by Essential Gold series PSUs’ standard 8pin / 6pin PCIe connectors, making them the leading choice for those seeking high efficiency and good performance for their money.
￭ High efficiency with 80 PLUS Gold certification
￭ 24/7 continuous power output with 40℃ operating temperature
￭ Class-leading single +12V rail
￭ Silent running 120mm fan with 18 dBA
￭ PCIe 8pin and PCIe 6pin connectors support
￭ All-black flat cables design
| Model No. |
SST-ET750-G
|
||||||||||||||||||||||||||||||||||||||||||
| Max. DC Output |
750W
|
||||||||||||||||||||||||||||||||||||||||||
| Power density |
415W per liter
|
||||||||||||||||||||||||||||||||||||||||||
| Load Range | |||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
| Color |
Black（Lead-Free Paint）
|
||||||||||||||||||||||||||||||||||||||||||
| Combined +3.3V & +5V |
120W
|
||||||||||||||||||||||||||||||||||||||||||
| Combined +12V |
744W
|
||||||||||||||||||||||||||||||||||||||||||
| Input Voltage |
90 ~ 264 Vrms
|
||||||||||||||||||||||||||||||||||||||||||
| Input Frequency Range |
47Hz ~ 63Hz
|
||||||||||||||||||||||||||||||||||||||||||
| PFC |
Active PFC（PF>0.9 at full load）
|
||||||||||||||||||||||||||||||||||||||||||
| Efficiency |
87% ~ 90% at 20% ~ 100% loading
|
||||||||||||||||||||||||||||||||||||||||||
| MTBF |
100,000 hours
|
||||||||||||||||||||||||||||||||||||||||||
| Operating temperature |
0°C ~ 40°C
|
||||||||||||||||||||||||||||||||||||||||||
| Protection |
Over Current Protection
Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection |
||||||||||||||||||||||||||||||||||||||||||
| Connectors |
1 x 24 / 20-Pin motherboard connector (500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2) 8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2) 3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm) 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm) |
||||||||||||||||||||||||||||||||||||||||||
| Cooling System |
Single 120mm silent fan
|
||||||||||||||||||||||||||||||||||||||||||
| Form factor |
ATX
|
||||||||||||||||||||||||||||||||||||||||||
| Noise Level |
18dBA minimum
|
||||||||||||||||||||||||||||||||||||||||||
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D) |
||||||||||||||||||||||||||||||||||||||||||
| Weight |
1.68 Kg
|
||||||||||||||||||||||||||||||||||||||||||
| Certification |
80 PLUS Gold
|
||||||||||||||||||||||||||||||||||||||||||
| Other |
Compatible with ATX12V v2.4
|
||||||||||||||||||||||||||||||||||||||||||
| ● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals. |
| GTIN | 4710007225325 |
|---|
