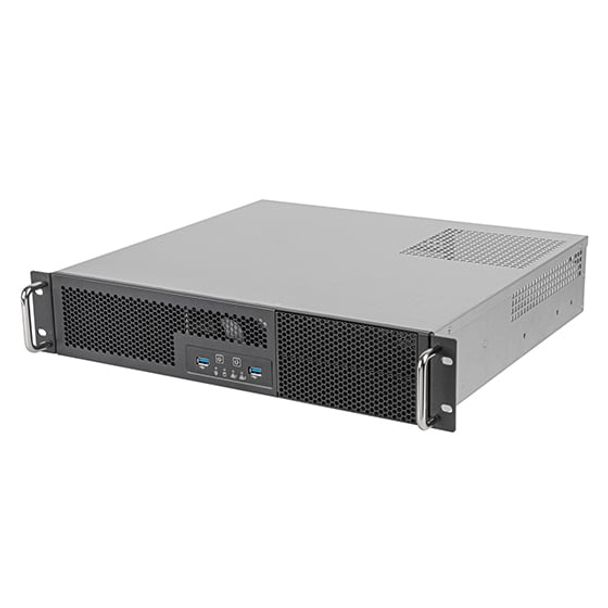

SilverStone SST-RM23-502-MINI 2U Rackmount Case No PSU

• Supports ATX (PS2) / 2U single / 2U redundant power supplies
• Supports 1 x 2.5" SSD and up to 2 x 3.5" HDD
• 5Gbps USB 3.1 Gen1 interface (downward compatible with USB 2.0 & USB 1.1)
• Dual 5.25" expansion bay brings flexibility in installing 5.25" devices
• Built-in fan bracket supports up to two 80mm x 25mm fans
• Supports Micro-ATX motherboard (9.6" x 9.6")
• Supports 4 low-profile PCI / PCIe slots

Well-equipped drive bays
Supports up to 2 x 5.25" drives externally, and up to 2 x 3.5" HHDs & 1 x 2.5" SSD internally
Outstanding cooling capabilities
A built-in fan bracket at the front supports 2 x 8025mm fans which supplies plentiful airflow for a 2U form factor system
Numerous PSU form factor compatibility
As a miniature sizing of the RM23-502, compatible PSU selection has greater flexibility than the original with support for ATX (PS2), 2U Single or 2U Redundant*

Product Specifications

Model No.
SST-RM23-502-MINI
Motherboard
Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Drive Bay
External
5.25" x 2 *
Internal

• 3.5" x 2
• 2.5" x 1

Expansion Slot
Low profile PCI / PCIe x 4
Front I/O Port
USB 3.1 Gen 1 Type-A x 2**
Power Supply
ATX (PS2) / 2U Single / 2U Redundant* (optional)
Net Weight
4.8 kg
Dimension
430mm (W) x 88.5mm (H) x 400mm (D), 15.22 Liters
Chassis form factor
2U
Front buttons
Power On / Off, system reset
Indicators

• Power status x 1
• HDD activity x 1
• LAN activity x 2

Main metal thickness
1mm
Limitation of CPU cooler
65mm
Cooling system
Front
80 x 25mm fan slot x 2
