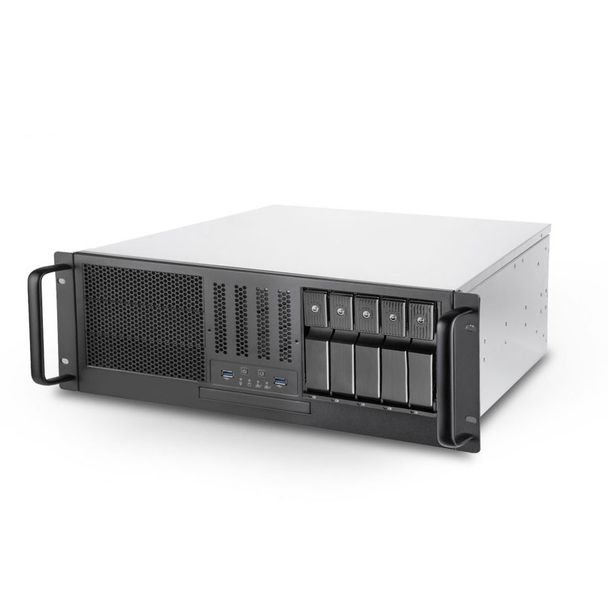

Silverstone RM41-H08 Black 4U Rackmount Case NO PSU SST-RM41-H08
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | Available in 24 Hours |
RM41-H08
4U form factor 5 x 3.5” Hot-swappable and 3 x 5.25" server chassis
￭ Supports up to five 12 Gbit/s 3.5" SAS / SATA drives with tray-free & screw-less design
￭ Drive tray features anti-theft lock design to keep confidential information secured
￭ Supports hot-swap function
￭ Supports up to SSI-CEB motherboard
￭ Supports 7 standard size PCI / PCIe expansion slots
￭ Three 5.25" drive bays for a more flexible installation of 5.25" devices
￭ Front I/O with 5Gbps USB 3.1 Gen1 ports, backward compatible with USB 2.0 / 1.1
￭ Pre-drilled mounting holes for easy sliding rails installation.
|
Length limitation: 7.87” (200mm)
|
|
|
Supports ATX (PS2) / Mini Redundant
|
|
|
Supports up to SSI-CEB (12" x 10.5") motherboards
|
RM41-H08 I/O ports
RM41-H08 handle bar
3.5" x 5 hot-swappable bays
Supports up to five 12 Gbit/s 3.5" SAS / SATA drives
3.5" HDD installed demonstration
CPU cooler installed demonstration
PSU installed demonstration
Vented 5.25 inch drive bays
Chassis intrusion switch
SPECIFICATIONS
| Model No. | SST-RM41-H08 | |
| Chassis form factor | 4U | |
| Material | SGCC | |
| Motherboard | SSI-CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") | |
| Drive Bay | External | 5.25" x 3 3.5" x 5 (Hot-swappable) |
| Internal | 3.5" x 4 2.5" x 2 (Support up to 15mm) 2.5" x 1 (Support up to 15mm) or slim optical drive (Support up to 12.7mm) |
|
| Power Supply | PS2 / ATX / Mini Redundant (supports up to 200mm) | |
| Expansion card | Compatible up to 7.87” (200mm) long | |
| Limitation of CPU cooler | 148mm | |
| Expansion Slot | 7 standard PCI / PCIe expansion slots | |
| Front I/O Port | USB 3.1 Gen1 Type-A x 2 | |
| Front buttons | Power On / Off, restart | |
| Indicators | Power status x 1, system reset x 1, network status x 2 | |
| Main metal thickness | 1.2mm | |
| Net Weight | 10.7 kg | |
| Dimension | 430mm (W) x 176mm (H) x 446mm (D) 16.93" (W) x 6.93" (H) x 17.56" (D) |
|
| * Your system must have a SAS controller to use SAS hard drives ** For maximum supported capacity and drive array, please consult with your SAS or SATA drive manufacturer *** RM41-H08 has 2 rows of slide rail locking holes. If you wish to fix it in the positive U position of the rack, please lock the rails in the sliding rail locking holes of the lower row of RM41-H08 |
| GTIN | 4710007229972 |
|---|
