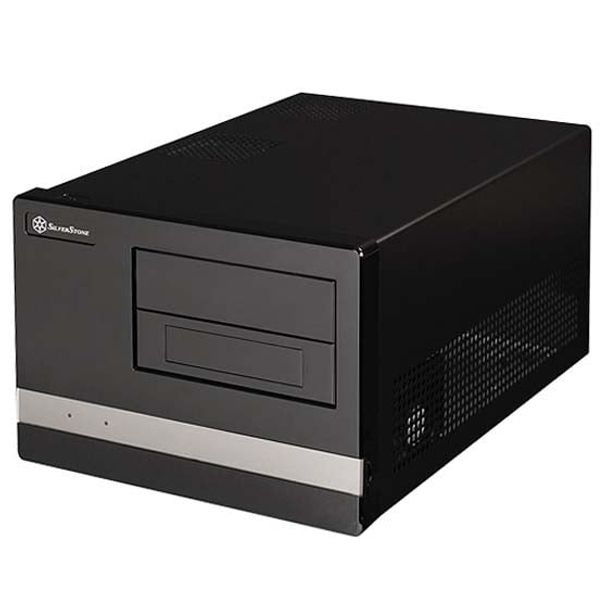

Silverstone SST-SG02B-F SG02F Black Micro ATX Desktop Case

Model
SST-SG02B-F
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
Available in 24 Hours
West Melbourne (Pickup)
Available in 24 Hours
$129.00
Black Acrylic/ABS front Bezel SECC body M-ATX M/B 2*5.25" 2*3.5"(or 2*2.5")(hidden) 1*80mm fans 2*80mm fans slot 1*audio 1*MIC 2*USB3.0 14.5"expansion card capable Support ATX PSU

Steel structure for silent builds

Modern and cleanly styled SFF chassis

Enhanced cooling layout for high performance

Dual 5.25" and 3.5" drive bays

Micro ATX motherboard & ATX PSU compatible

Extended-length expansion cards support



The SG02F, as the successor to the SG02 is an evolutionary step forward in both performance and the capabilities over the original Sugo chassis, the SG01. With the case now capable of handling even more powerful graphics cards than ever before, the SilverStone engineers were still able to keep the smaller dimension in tact. Although SG02F's front panel design is unchanged from its predecessor, its styling and function continues to stand out from ordinary SFF designs. The same can also be said of its tried and true chassis layout, which is still capable of accepting larger ATX power supply or optical drives than other SFF cases available. Built based on a brand new steel structure, the SG02F is sure to please potential builders looking for primarily silent applications.



Model No. SST-SG02B-F (black)
Material ABS & acrylic front panel, SECC body
Motherboard Micro-ATX
Drive bay External 5.25" x 2
3.5" converter x 1
Internal 3.5" x 2
Cooling system Front --
Rear 1 x 80mm fan slot, Optional cross-flow fan
Side 1 x 80mm intake fan 2050rpm Option 80mm or 70mm in thickness of 25mm, 15mm or 10mm
Top 1 x 80mm fan slot
Bottom --
Internal --
Expansion slot 4
Front I/O port USB 2.0 x 2 (SST-SG02B-F, SST-SG02W-F only)
USB 3.0 x 2 (SST-SG02B-F-USB3.0, SST-SG02W-F-USB3.0 only)
Audio x 1?
MIC x 1
Power supply Optional standardPS2(ATX)
Expansion card Compatible up to 14.5" (368mm) long, width restriction-4.46" (113mm)*
Limitation of CPU cooler 82mm
Limitation of PSU PSU + optical drive/5.25" device = 370mm
Net weight 4.1 kg
Dimension 270 mm (W) x 212 mm (H) x 393 mm (D), 22.5 liters
10.63" (W) x 8.35" (H) x 15.47" (D), 22.5 liters

Remark
¡¯ CPU cooler cannot exceed 82mm in height

More Information
GTIN4710713964624
