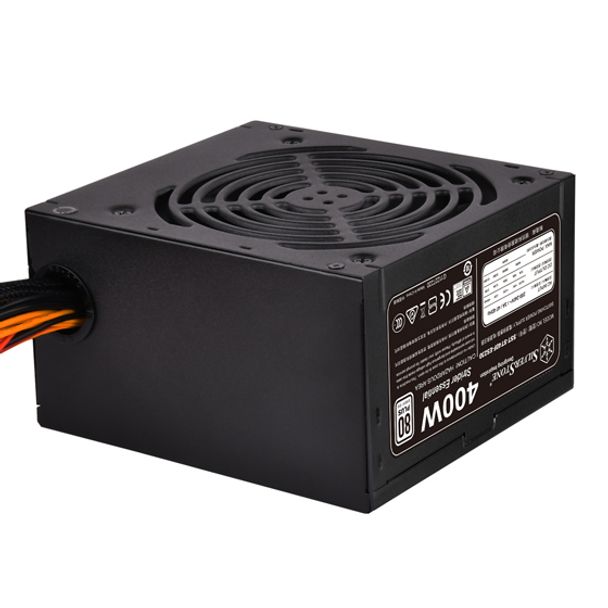

Silverstone SST-ST40F-ES230 Essential 230V 400W PSU 80+

Name: Silverstone SST-ST40F-ES230 Essential 230V 400W PSU 80+
Brand: Silverstone
SKU: POW-SIL-ST40F
Price: 49 AUD
Availability: InStock

Model

SST-ST40F-ES230

Be the first to review this product

Location	Availability
Online (Delivery)	In Stock
Notting Hill (Pickup)	In Stock
Preston (Pickup)	In Stock
West Melbourne (Pickup)	In Stock

$49.00

High efficiency with 80 PLUS certification. 24/7 continuous power output with 40? operating temperature. Class-leading single +12V rail. Active PFC Circuitry. PCI-E 8pin and PCI-E 6pin connector support. Silent running 120mm fan with 18dBA

Details

The Strider Essential series is a line of power supplies designed with high affordability and great performance. They have 80 PLUS certification with maximum efficiency of up to 85% under 230V. Equipped with powerful single +12V rail and quiet running fan, they also provide stable performance with minimum noise. For longevity, they are based on proven design and built with quality components to support 24/7 operation at up to 40 degrees Celsius. Even high-end systems with powerful graphics cards can be powered easily by Strider Essential PSUs standard 8pin/6pin PCI-E connectors, making them an outstanding choice for those seeking best value and performance for their money.

Remark


Designed for 80 PLUS level of efficiency to reduce wasted heat and save on electricity.		Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.


Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.		Compact 140mm depth design for easier installation in small from factor.

Model No.

SST-ST70F-ES230

Max. DC Output

700W

Power density

388W per liter

Load Range

	+3.3V	+5V	+12V	+5VSB	-12V
Max.(Amps)	22A	22A	54A	2.5A	0.3A
Peak (Amps)	/	/	/	/	/
Min.(Amps)	0A	0A	0A	0A	0A
Range (%)	±5%	±5%	±5%	±5%	±10%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple(mVp-p)	50mV	50mV	120mV	50mV	120mV

Color

Black(Lead-Free Paint)

Combined +3.3V & +5V

130W

Combined +12V

648W

Input Voltage

180V~264V

Input Frequency Range

47Hz~63Hz

PFC

Active PFC(PF>0.9 at full load)

Efficiency

82% ~ 85% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over Power Protection
Over Voltage Protection
Short Circuit Protection

Connectors

1 x 24 / 20-Pin motherboard connector(500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
4 x 8 / 6-Pin PCIE connector("500mm / 150mm" x 2)
4 x SATA connector("500mm / 150mm" x 2)
3 x 4-Pin Peripheral connector(500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector(500mm / 150mm / 150mm / 150mm)

Cooling System

Single 120mm silent fan

Form factor

ATX

Noise Level

18 dBA minimum

Dimension

150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)

Weight

1.43 kg

Certification

80 PLUS

Other

GPU Support list
Compatible with ATX12V v2.4

Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
