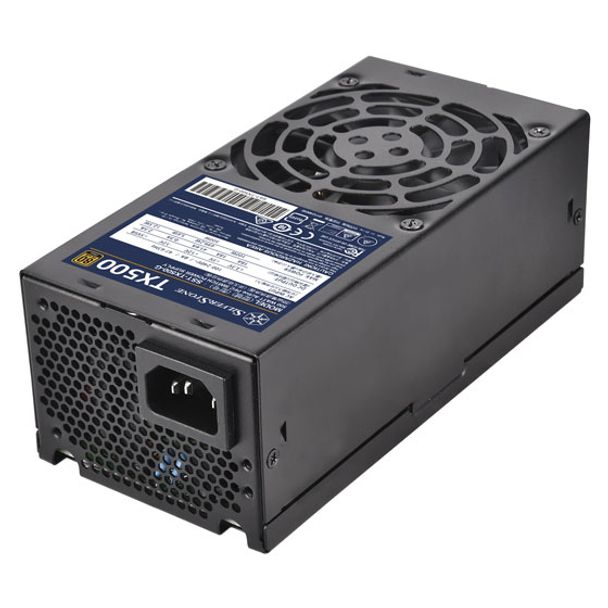

Silverstone SST-TX500-G 500W Gold TFX Power Supply
Model
SST-TX500-G
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$155.00
Silverstone SST-TX500-G 500W Gold TFX Power Supply
TX500 Gold
80 PLUS Gold 500W TFX power supply
￭ Support standard TFX form factor
￭ 500W continuous power output at 50°C operating temperature rated for 24/7 operation
￭ High efficiency with 80 PLUS Gold certification
￭ Silent running 80mm fan with 18 dBA minimum
￭ Multiple protection circuitry
￭ Single PCI-E 6+2pin connectors support
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity
Built-in 80mm fan has excellent airflow and low noise, perfect for quiet home or office use
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Advanced protections for safety and security
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
24 / 20-Pin motherboard connector
Sleeved cables
4-Pin peripheral connector
8 / 6-Pin PCIe connector
4-Pin floppy connector
Silent HYB 80mm fan
8 / 4-Pin EPS / ATX 12V connector
SATA connector
SPECIFICATIONS
| Product No. |
SST-TX500-G
|
||||||||||||||||||||||||||||||||||||||||||
| Max. DC Output |
500W
|
||||||||||||||||||||||||||||||||||||||||||
| Power density |
517W per liter
|
||||||||||||||||||||||||||||||||||||||||||
| Load Range | |||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
| Model (on safety) |
SST-TX500-G
|
||||||||||||||||||||||||||||||||||||||||||
| Color |
black (lead-free paint)
|
||||||||||||||||||||||||||||||||||||||||||
| Combined +3.3V & +5V |
100W
|
||||||||||||||||||||||||||||||||||||||||||
| Combined +12V |
499.2W
|
||||||||||||||||||||||||||||||||||||||||||
| Input Voltage |
90 ~ 264 Vrms
|
||||||||||||||||||||||||||||||||||||||||||
| Input Frequency Range |
47Hz ~ 63Hz
|
||||||||||||||||||||||||||||||||||||||||||
| PFC |
Active PFC (PF>0.9 at full load)
|
||||||||||||||||||||||||||||||||||||||||||
| Efficiency |
87% ~ 90% (at 20% ~ 100% loading)
|
||||||||||||||||||||||||||||||||||||||||||
| MTBF |
100,000 hours
|
||||||||||||||||||||||||||||||||||||||||||
| Operating temperature |
0 ~ 50°C
|
||||||||||||||||||||||||||||||||||||||||||
| Protection |
Over current protection
Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection |
||||||||||||||||||||||||||||||||||||||||||
| Connectors |
1 x 24 / 20-Pin motherboard connector (350mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (450mm) 2 x 8 / 6-Pin PCIE connector (350mm / 150mm) 4 x SATA connector ("350mm / 150mm" x 2) 2 x 4-Pin Peripheral connector (350mm / 150mm) 2 x 4-Pin Peripheral and 1 x 4-Pin Floppy adapter connector (350mm / 150mm / 150mm) |
||||||||||||||||||||||||||||||||||||||||||
| Cooling System |
Single 80mm silent HYB fan
|
||||||||||||||||||||||||||||||||||||||||||
| Form factor |
TFX
|
||||||||||||||||||||||||||||||||||||||||||
| Noise Level |
18 dBA minimum
|
||||||||||||||||||||||||||||||||||||||||||
| Dimension |
85mm (W) x 65mm (H) x 175mm (D)
3.35" (W) x 2.56" (H) x 6.89" (D) |
||||||||||||||||||||||||||||||||||||||||||
| Weight |
1.38 kg
|
||||||||||||||||||||||||||||||||||||||||||
| Certification |
80 PLUS Gold
|
||||||||||||||||||||||||||||||||||||||||||
| Other |
GPU Support list
Compatible with ATX12V v2.4 |
||||||||||||||||||||||||||||||||||||||||||
| ● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals. |
| GTIN | 4710679810454 |
|---|
