Startech 25SATSAS35 2.5" SATA/SAS to 3.5" SATA Hard drive converter
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |

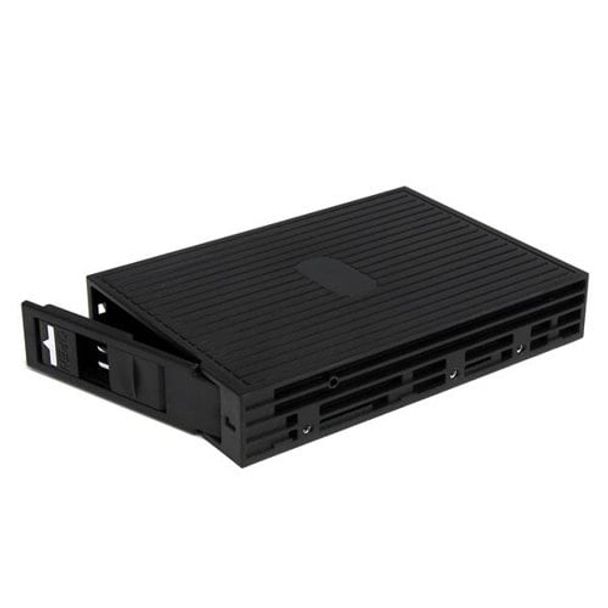

The 25SATSAS35 2.5-inch SATA/SAS to 3.5-inch SATA Hard Drive Converter converts a 2.5-inch SATA or SAS hard drive (HDD) or solid state drive (SSD) into a 3.5-inch form factor SATA Hard Drive.
The converter provides a versatile solution for 2.5-inch drive installations, enabling you to install a 2.5-inch SATA/SAS drive in a 3.5-inch bay, drive drawer caddy/tray, or into a 3.5-inch drive enclosure.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller.
Suitable for drives with a height of up to 15mm, virtually any 2.5-inch SATA or SAS hard drive can be made to look and function like a 3.5-inch hard drive. The drive converter includes mounting holes along the side and base, allowing you to mount the drive if needed, into a compatible system.
The Drive Converter features a trayless design for simple drive installation and removal, and is constructed of durable, yet lightweight plastics, with ventilation openings to aid air flow and help keep hard drives running cooler.
| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Compatible Drive Types | SAS & SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in |
| Fan(s) | No |
| Front Door Key Lock | No |
| Number of 2.5 inch bays | 1 |
| Number of Drives | 1 |
| Performance | |
| RAID | No |
| Temperature Alarm | No |
| Connector(s) | |
| Drive Connectors | 1 - SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle |
| Host Connectors | 1 - SATA Data & Power Combo (7+15 pin) Plug |
| Special Notes / Requirements | |
| Note | Although mobile racks can enable a Serial Attached SCSI (SAS) drive to connect using a standard Serial ATA (SATA) connector, the hard drive controller must be SAS compatible to properly support SAS drives. SAS controllers can work with SAS and SATA drives, but most SAS drives will only work with a SAS controller. |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Max Drive Height | 0.6 in [15 mm] |
| Product Height | 1 in [25 mm] |
| Product Length | 5.7 in [145 mm] |
| Product Weight | 4.9 oz [140 g] |
| Product Width | 3.9 in [100 mm] |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 7 oz [199 g] |
| What's in the Box | |
| Included in Package | 1 - 2.5" to 3.5" HDD Converter |
