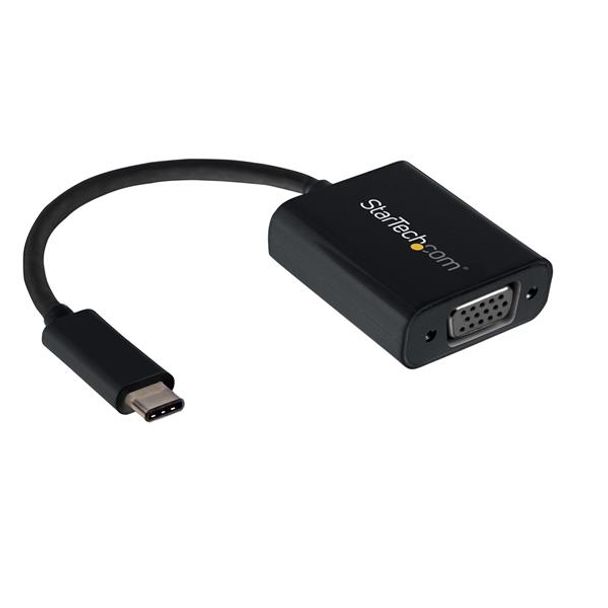

StarTech CDP2VGA USB-C to VGA Adapter
Model
CDP2VGA
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$52.00
USB-C to VGA adapter - USB Type-C to VGA Video Converter - USB 3.1 Type-C to VGA Video Adapter - USB 2.0 Type-C to VGA Video Converter - USB 3.0 Type-C to VGA Adapter
This USB-C™ to VGA video adapter lets you output high-definition VGA video from your USB Type-C™ device.
USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. The connector is featured on ultra-portable devices with USB 3.1 Gen 1. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the MacBook and Chromebook Pixel™. It's also compatible with Thunderbolt™ 3 ports.
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| AV Input | USB Type-C | |
| AV Output | VGA | |
| Chipset ID | NXP - PTN5100 NXP - PTN3355 |
|
| Ports | 1 | |
| PERFORMANCE | ||
| Maximum Analog Resolutions | 1920x1200 or 1080p | |
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Connector A | 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input | |
| Connector B | 1 - VGA (15 pin, High Density D-Sub) Female Output | |
| SPECIAL NOTES / REQUIREMENTS | ||
| System and Cable Requirements | Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. | |
| POWER | ||
| Power Source | USB-Powered | |
| ENVIRONMENTAL | ||
| Humidity | 25% to 85% RH Non-Condensing | |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) | |
| Storage Temperature | 5°C to 35°C (41°F to 95°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 5.5 in [140 mm] | |
| Color | Black | |
| Product Height | 0.6 in [14 mm] | |
| Product Length | 7.1 in [180 mm] | |
| Product Weight | 0.8 oz [24 g] | |
| Product Width | 1.5 in [37 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 1 oz [29 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - USB-C to VGA adapter | |
| GTIN | 065030862608 |
|---|
