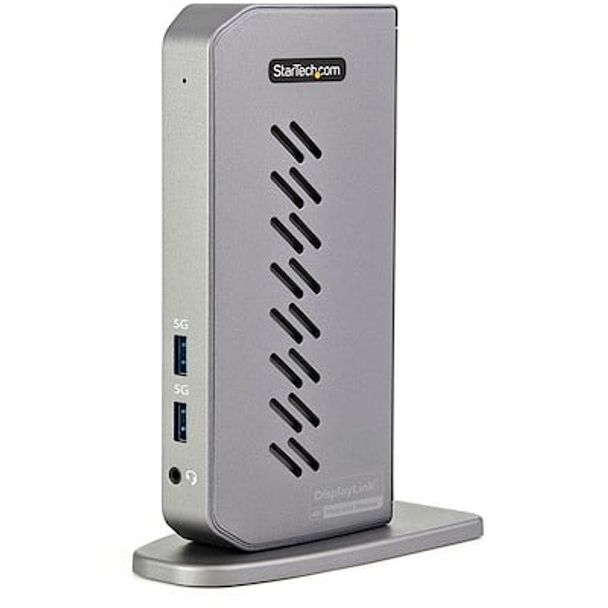

Startech DK30A2DHU Hybrid Universal USB-C USB-A Dual Monitor Docking Station
Model
DK30A2DHU
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$199.00
STARTECH.COM HYBRID USB-C USB-A 3.0 DOCK, DUAL 4K 60HZ, HDMI(2),DP(2),USB(6), 3 YR
Transition from the legacy USB-A (USB 3.1/3.0) to newer USB-C laptops with this universal laptop docking station for USB-C and USB-A laptops. The USB 3.1 Gen 1 (5 Gbps) Type-C dock features dual HDMI and/or DisplayPort monitors, fast-charge, six USB Type-A downstream peripheral ports, and headset audio.
Flexible Monitor Connections
This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.
-
Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz
-
Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz
-
Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz
-
Single 5K DisplayPort* | Up to 5120 × 2880
*Requires monitor support for 5K using two DP ports
| Warranty Information | Warranty | 3 Years |
|---|---|---|
| Connector(s) | 6 - Connector Type(s) | USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) |
| 1 - Connector Type(s) | RJ-45 | |
| 2 - Connector Type(s) | HDMI | |
| DisplayPort | ||
| 1 - Connector Type(s) | 3.5 mm Audio | |
| 1 - Host Connectors | USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps) | |
| Environmental | Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C | |
| Humidity | 0% to 95% (non-condensing) at 25°C | |
| Hardware | 4K Support | Yes |
| Fast-Charge Port(s) | Yes | |
| Displays Supported | 2 | |
| Ports | 8 | |
| Audio | Yes | |
| Interface | USB 3.2 Gen 2 - 10 Gbit/s | |
| Bus Type | USB-C | |
| USB Pass-Through | Yes | |
| Chipset ID | DL-6950 | |
| Packaging Information | Package Height | 5.6 in [14.2 cm] |
| Package Length | 4.3 in [10.9 cm] | |
| Shipping (Package) Weight | 12.7 oz [360.0 g] | |
| Package Width | 8.3 in [21.0 cm] | |
| Performance | Maximum Digital Resolutions | 4K 60Hz |
| General Specifications | Wake-on-LAN (WoL): Yes | |
| MTBF | 26 280 hrs | |
| Physical Characteristics | Color | Black & Gray |
| Product Height | 7.4 in [18.7 cm] | |
| Product Length | 2.9 in [73.0 mm] | |
| Weight of Product | 12.0 oz [340.0 g] | |
| Product Width | 5.3 in [13.5 cm] | |
| Material | Aluminum and Plastic | |
| Cable Length | 39.4 in [100 cm] | |
| Power | Power Source | AC Adapter Included |
| Input Voltage | 110V-240V AC | |
| Input Current | 1.0A | |
| Output Voltage | 20V DC | |
| Output Current | 2A | |
| Plug Type | N | |
| Power Consumption (In Watts) | 40W | |
| Software | OS Compatibility | Windows®️ 2000, XP, Vista, 7, 8, 8.1, 10 macOS 10.6 - 10.12, 10.14 - 10.15, 11.0 Chrome OS™️ v55+ |
| Special Notes / Requirements | Note | DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup. |
| What's in the Box | 1 - Included in Package | Docking Station |
| USB-C to USB-B Cable | ||
| USB-A to USB-B Cable | ||
| Universal Power Adapter (NA/JP, ANZ) | ||
| Dock Stand | ||
| Quick-Start Guide |
| GTIN | 0065030891349 |
|---|
