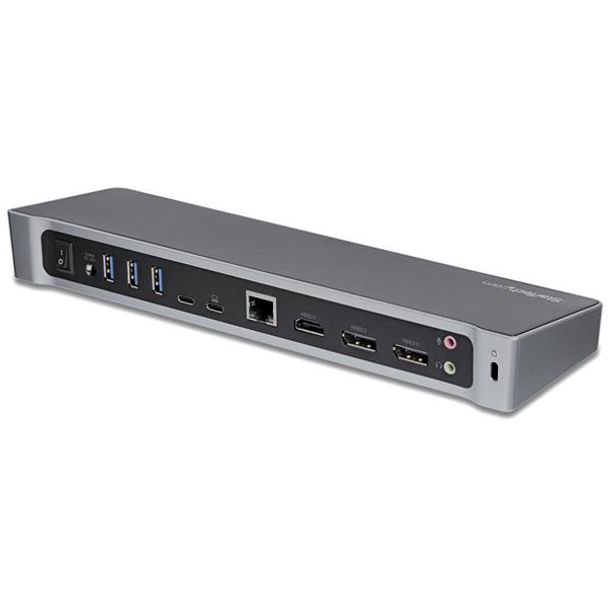

Startech DK30CH2DEP Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD

Name: Startech DK30CH2DEP Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD
Brand: StarTech
SKU: DOC-STA-DK302DE
Price: 332.5 AUD
Availability: InStock

Model

DK30CH2DEP

Be the first to review this product

Location	Availability
Online (Delivery)	Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)	Available from Supplier (2 to 7 Working Days)
Preston (Pickup)	Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)	Available from Supplier (2 to 7 Working Days)

$332.50

USB C DOCK - TRIPLE 4K - 100W USB PD - MAC WINDOWS & CHROME OS - USB-C TO 2X DP - USB C TO HDMI / ETHERNET - 5X USB 3.0

Details

This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.

You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:

2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.

100W Power Delivery

Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.

Powerful Connections

This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.

The TAA compliant DK30CH2DEP is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Applications

Ideal for 4K video editing or working with high-resolution graphics
Work on multiple documents simultaneously in office applications
View multiple monitors at a glance, in financial or investment firms
Enhanced Power Delivery (100W) supports power-hungry laptops

Technical Specifications

WARRANTY INFORMATION
	Warranty	3 Years
HARDWARE
	4K Support	Yes
	Bus Type	USB-C
	Chipset ID	DisplayLink - DL-6950 Genesys Logic - GL3523 Genesys Logic - GL3523S Texas Instruments - TPS65982 Parade Technologies - PS176
	Displays Supported	3
	Fast-Charge Port(s)	Yes
	Industry Standards	USB Power Delivery Specification Rev. 2.0 USB Battery Charging Specification Rev. 1.2 DisplayPort 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1
PERFORMANCE
	Auto MDIX	Yes
	Compatible Networks	10/100/1000 Mbps
	Full Duplex Support	Yes
	Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
	Maximum Digital Resolutions	1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz 2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz 1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
	Type and Rate	USB 3.0 - 5 Gbit/s
	UASP Support	Yes
CONNECTOR(S)
	Connector Type(s)	2 - DisplayPort (20 pin) Female
		1 - HDMI (19 pin) Female
		2 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
		1 - USB 3.0 A (Fast-Charge, 9 pin) Female
		3 - USB Type-A (9 pin) USB 3.0 Female
		1 - RJ-45 Female
		1 - 3.5 mm Mini-Jack (4 Position) Female
		2 - 3.5 mm Mini-Jack (3 Position) Female
		1 - Security Lock Slot Female
SOFTWARE
	OS Compatibility	Windows® 7, 8, 8.1, 10 macOS 10.9 - 10.12, 10.14 - 10.15 Chrome OS™ v55+
SPECIAL NOTES / REQUIREMENTS
	Note	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
		4K resolution is supported on all 3 video ports. A 4K-capable display is required to achieve 4Kx2K resolution
		If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
		USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
		5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions
		The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-C to A cable, sold separately, but only dual display is supported, and Power Delivery to charge your laptop is not available through USB-A
	System and Cable Requirements	USB-C enabled computer with an available USB Type-C port
POWER
	Center Tip Polarity	Positive
	Input Current	2.5 A
	Input Voltage	100 - 240 AC
	Output Current	7.5 A
	Output Voltage	20V DC
	Plug Type	N
	Power Delivery	100W
	Power Source	AC Adapter Included
ENVIRONMENTAL
	Humidity	0~70% RH
	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
	Color	Black & Silver
	Material	Plastic
	Product Height	1.3 in [3.4 cm]
	Product Length	10.6 in [27 cm]
	Product Width	3.2 in [82 mm]
	Weight of Product	13.5 oz [382 g]
PACKAGING INFORMATION
	Package Height	3.1 in [80 mm]
	Package Length	12.6 in [32 cm]
	Package Width	6.3 in [16 cm]
	Shipping (Package) Weight	58.4 oz [1654 g]
WHAT'S IN THE BOX
	Included in Package	1 - Docking Station
		1 - USB-C Cable
		1 - Universal Power Adapter (NA/JP, ANZ)
		1 - User Manual
		1 - Anti-Slip Rubber Pads
