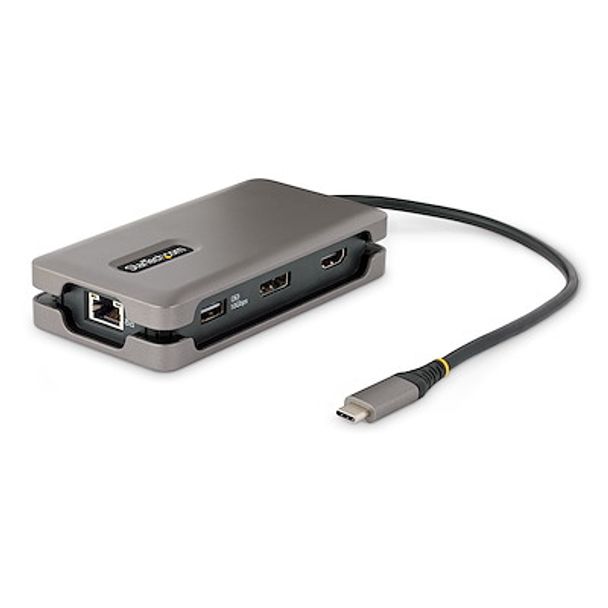

StarTech DKT31CDHPD3 USB-C Multiport Adapter

SKU
ADA-USBC-DKT31C
Model
DKT31CDHPD3
Add to Compare
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$126.90
StarTech DKT31CDHPD3 USB-C Multiport Adapter
StarTech
065030893077
Add to Wish List

Connect this USB Type-C Multiport Adapter to a USB-C, USB4, or Thunderbolt 3/4 laptop to enable single-display HDMI 2.0b or DisplayPort 1.4 video output via DP Alt Mode, supporting resolutions up to 4K 60Hz. The USB-C dock works with USB Type-C laptops or tablets, such as a Chromebook, Dell XPS, or MacBook. It features a 3-Port USB 3.2 Gen 2 (10Gbps) Hub (2x USB-A, 1x USB-C), and Gigabit Ethernet. Connect the laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, to charge the laptop.

Extra-Long Cable with Built-in Cable Manager

The Multiport Adapter features an extra-long attached 12.6in. (32cm) USB-C host cable. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables. The extra-long cable reduces port/connector strain, particularly when laptops are placed on riser stands, or on 2-in-1 devices with raised USB-C ports, such as the Microsoft Surface. In addition, the Multiport Adapter also features an innovative wrap-around cable manager that facilitates tangle-free storage in a laptop bag.

USB 3.2 Gen 2 Hub

Connect one USB-C and two USB-A peripherals to the USB 3.2 Gen 2 (10Gbps) ports.

A versatile solution for adding docking station capabilities in an office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone or connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.

USB PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when disconnecting the power source.

Wired Gigabit Network Connectivity

The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and Wake-on-LAN (WoL).

Applications

  • Ideal for travel between the home and office
  • Connect a USB-C power adapter to charge a laptop while using the multiport adapter

Specifications

Warranty Information
Warranty
3 Years
Package Quantity
1
Ports
3
Connector(s)
External Ports
1 - HDMI (19 pin)
1 - DisplayPort (20 pin)
2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
1 - USB Type-C (24 pin) USB Power Delivery Only
1 - RJ-45
Host Connectors
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 55°C (-4°F to 158°F)
Humidity
0% to 85% (non-condensing)
Hardware
4K Support
Yes
Fast-Charge Port(s)
No
Displays Supported
1
Interface
USB 3.2 Gen 2 (10 Gbps)
Bus Type
USB-C
Industry Standards
HDMI 2.0b
DisplayPort 1.4
Chipset ID
Realtek - RTL8153
Realtek - RTL2142
VIA - VL822-Q8
VIA - VL103
Indicators
LED Indicators
1 - Network Link Speed - Green (Network Operating at 1Gbps or 100Mbps), Off (Network Operating at 10Mbps or Lower)
1 - Network Link Status - Solid Amber (Link Detected), Flashing Amber (Link Activity), Off (No Link Detected)
Packaging Information
Package Length
6.7 in [17.0 cm]
Package Width
5.6 in [14.2 cm]
Package Height
1.2 in [3.0 cm]
Shipping (Package) Weight
5.4 oz [152.0 g]
Performance
Maximum Data Transfer Rate
10Gbps
Maximum Digital Resolutions
4K (4096 × 2160) 60Hz
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
PXE
Yes
Full Duplex Support
Yes
General Specifications
Maximum Laptop Charging: 85W
Physical Characteristics
Color
Space Gray
Product Length
4.9 in [12.4 cm]
Product Width
2.5 in [6.4 cm]
Product Height
1.0 in [2.5 cm]
Weight of Product
4.6 oz [130.0 g]
Material
Plastic
Cable Length
12.6 in [32 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Power Delivery
100W
Power Consumption (In Watts)
15W
Software
OS Compatibility
Windows 7, 8, 8.1, 10, 11
macOS 10.15, 11.0, 12.0, 13.0
Android
Linux Ubuntu 18.04, 20.04
ChromeOS
Special Notes / Requirements
System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 3.0 and DP alt mode).
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that the host's USB-C port supports USB Power Delivery and DP alt mode.
If the USB-C Host does not support USB Power Delivery, the PD Power Port will not supply power to the USB-C Host.
USB 3.2 Gen 2 (10Gbps) is also known as SuperSpeed USB 10Gbps, and USB 3.1 Gen 2 (10Gbps).
The host laptop may have specific charging requirements. For example, if the laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For information pertaining to Power Delivery capability, refer to the technical documents included with the host laptop.
What's in the Box
Included in Package
1 - USB-C Multiport Adapter
1 - Quick-Start Guide
