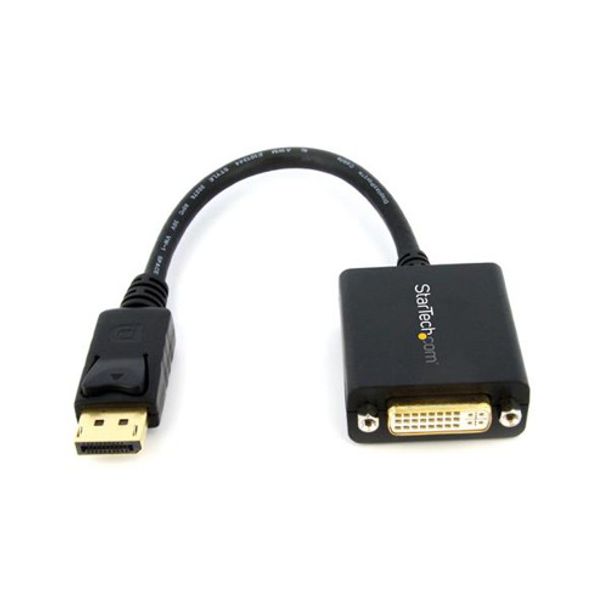

StarTech DP2DVI2 DisplayPort to DVI Adapter
Model
DP2DVI2
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$19.00
DisplayPort to DVI Video Adapter Converter
The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.
Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Active or Passive Adapter | Passive | |
| Adapter Style | Adapters | |
| Audio | No | |
| AV Input | DisplayPort | |
| AV Output | DVI | |
| PERFORMANCE | ||
| Maximum Digital Resolutions | 1920x1200 / 1080p | |
| Supported Resolutions | 1920x1080 (1080p) 1680x1050 (WSXGA+) 1600x1200 1600x900 1440x900 1400x1050 (SXGA+) 1366x768 1360x768 1280x1024 1280x960 1280x800 1280x768 (WXGA) 1280x720p (720p) 1280x600 1152x864 1024x768 800x600 (SVGA) 640x480 (480p) |
|
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Connector A | 1 - DisplayPort (20 pin) Latching Male | |
| Connector B | 1 - DVI-I (29 pin) Female | |
| SPECIAL NOTES / REQUIREMENTS | ||
| System and Cable Requirements | DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported) | |
| ENVIRONMENTAL | ||
| Humidity | 5%-90%RH | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 6 in [152.4 mm] | |
| Color | Black | |
| Product Height | 0.7 in [17 mm] | |
| Product Length | 10 in [254 mm] | |
| Product Weight | 1.5 oz [43 g] | |
| Product Width | 1.7 in [42 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 1.8 oz [52 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - DisplayPort to DVI Converter | |
| GTIN | 065030836869 |
|---|
