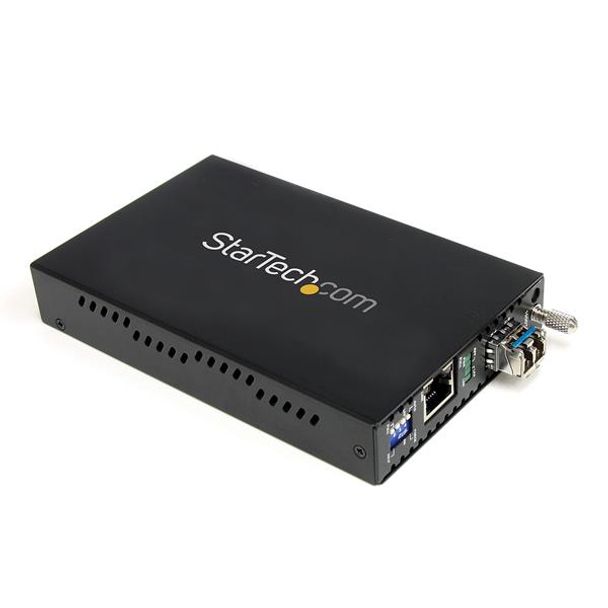

StarTech ET1000S40LC2 Gigabit Fiber Media Converter LC 40 km

Model
ET1000S40LC2
LocationAvailability
Online (Delivery)
Preorder
Notting Hill (Pickup)
Preorder
Preston (Pickup)
Preorder
West Melbourne (Pickup)
Preorder
$719.00
1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km

The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).

A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
  • Perfect for secure connections required by government agencies where EMI is not acceptable
  • Connect traffic control/monitoring systems at extreme distances to the main office
  • Extend network connectivity to remote areas of stadiums, auditoriums or other venues
  • Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over single mode fiber cable


Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Industry Standards IEEE802.3ab (1000BASE-T)
IEEE802.3z (1000BASE-SX/LX)
  PoE No
  WDM No
PERFORMANCE
  Auto MDIX Yes
  Fiber Operating Mode Half/Full-Duplex
  Jumbo Frame Support 9K max.
  Max Transfer Distance 40 km (24.8 mi)
  Maximum Data Transfer Rate 2000 Mbps (full duplex mode)
  MTBF 65,000 Hours
  Type Single Mode
  Wavelength 1310nm
CONNECTOR(S)
  Local Unit Connectors 1 - Fiber Optic LC Duplex Female
    1 - RJ-45 Female
POWER
  Center Tip Polarity Positive
  Input Current 0.36A
  Input Voltage 115V-230V AC
  Output Current 1.6 A
  Output Voltage 12 DC
  Plug Type M
  Power Consumption (In Watts) 4
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 10~90% RH
  Operating Temperature 0°C to 60°C (32°F to 140°F)
  Storage Temperature -10°C to 70°C (14°F to 158°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Product Height 0.9 in [24 mm]
  Product Length 6.1 in [155 mm]
  Product Weight 14.4 oz [407 g]
  Product Width 3.4 in [87 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 26.6 oz [754 g]
WHAT'S IN THE BOX
  Included in Package 1 - Fiber Media Converter
    1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
    1 - Grounding Screw
    1 - Instruction Manual

More Information
GTIN065030846066
