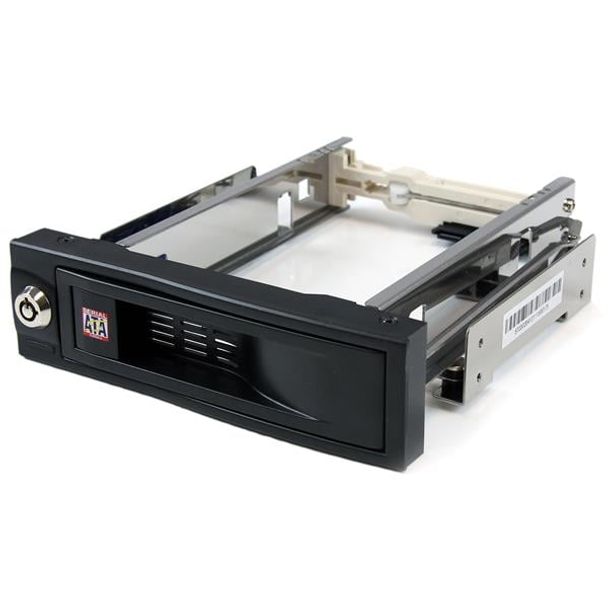

StarTech HSB100SATBK 5.25in Trayless Mobile Rack for 3.5in HDD

Model
HSB100SATBK
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$44.00
StarTech HSB100SATBK 5.25in Trayless Mobile Rack for 3.5in HDD

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.

The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Compatible Drive Types SATA
  Drive Size 3.5in
  Front Door Key Lock Yes
  Number of Drives 1
PERFORMANCE
  Hot Swap Capability Yes
  Insertion Rating 50,000+ Cycles
  Temperature Alarm No
CONNECTOR(S)
  Drive Connectors 1 - SATA (7 pin, Data) Receptacle
    1 - SATA Power (15 pin) Receptacle
  Host Connectors 1 - SATA (7 pin, Data) Plug
    1 - SATA Power (15 pin) Plug
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
INDICATORS
  LED Indicators 1 - Drive Power/Activity
ENVIRONMENTAL
  Humidity Operating - 5~85% RH Non-condensing
Storage - 5~95%
  Operating Temperature 0°C to 50°C (32°F to 122°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Aluminum and Plastic
  Product Height 1.7 in [42 mm]
  Product Length 7.2 in [184 mm]
  Product Weight 9.2 oz [261 g]
  Product Width 5.9 in [149 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 12.9 oz [366 g]
WHAT'S IN THE BOX
  Included in Package 1 - 5.25" Tray-Less SATA Hot-Swap Bay
    2 - Key
    1 - Screw Kit
    1 - Instruction Manual
    1 - Drive Activity LED and 2 Pin Wire
