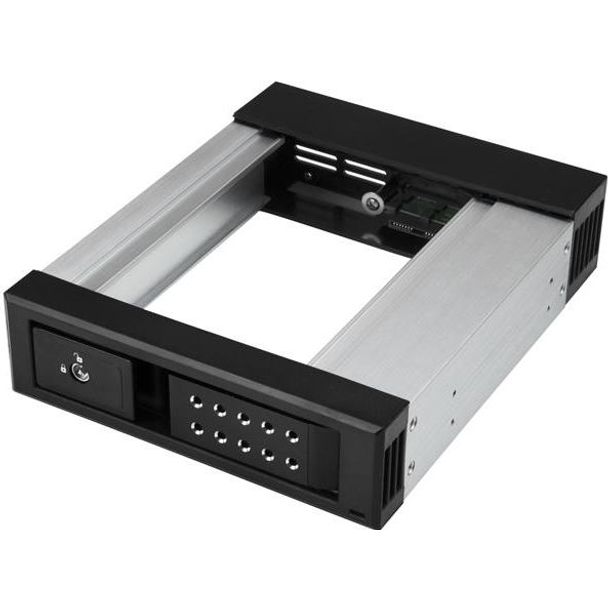

StarTech HSB1SATSASBA 5.25 to 3.5 Hard Drive Hot Swap Bay

Model
HSB1SATSASBA
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$82.00
5.25 to 3.5 Hard Drive Hot Swap Bay - Trayless - For 3.5in SATA/SAS Drives - Front Mount - Hard Drive Bay - SAS Backplane - SATA Backplane - Hot Swap Mobile Rack - HDD Rack

This removable hard drive hot-swap bay makes it easy to swap 3.5” SATA or SAS drives in and out of your server or desktop computer, using an available 5.25” front drive bay. It features a trayless design that saves you installation time and enables you to insert or remove drives as needed, creating a convenient solution for drive maintenance and interchangeability of data between multiple systems.

Hot-swap drives easily

This hot-swap bay/mobile rack is ideal for IT professionals, such as system administrators or computer operators, for quickly swapping, replacing, or transporting drives between various systems and locations. With support for both SATA and SAS 3.5” drives, it saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers.

Valuable drive protection

The hot-swap bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation. To safeguard your data, you can lock the drive bay door to prevent unauthorized access to your drive.

Fast data transfers

To maximize the speed and performance of your drives, the mobile rack supports SAS I and II and SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller.

The HSB1SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Provides easy hot-swapping of drives in environments where drives need to be replaced or removed regularly, such as server rooms and data centers
  • Ideal for use in industrial or enterprise storage applications such as data backup, recovery, and archiving
  • For building or upgrading computer systems for organizations such as government agencies, small-to-medium businesses, educational institutions, medical facilities, and military organizations



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Compatible Drive Types SAS & SATA
  Drive Installation Removable
  Drive Size 3.5in
  Fan(s) No
  Front Door Key Lock Yes
  Interface SATA
  Number of Drives 1
PERFORMANCE
  Hot Swap Capability Yes
  Max Drive Capacity Currently tested with up to 10TB 7200 RPM hard drive
  Maximum Data Transfer Rate 6 Gbps
  Temperature Alarm No
  Type and Rate SATA/SAS 6 Gbps
CONNECTOR(S)
  Drive Connectors 1 - 29 pin SAS SFF-8482 Female Female
  Host Connectors 1 - SATA Data & Power Combo (7+15 pin) Male
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
INDICATORS
  LED Indicators 1 - Drive Power/Activity
ENVIRONMENTAL
  Humidity Operating - 5~85% RH Non-condensing
Storage - 5~95%
  Operating Temperature 0°C to 50°C (32°F to 122°F)
  Storage Temperature -20°C to 60°C(-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Aluminum
  Max Drive Height 1 in [26.1 mm]
  Product Height 1.5 in [39 mm]
  Product Length 7.1 in [179.4 mm]
  Product Weight 11.9 oz [336 g]
  Product Width 5.7 in [146 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 14.5 oz [412 g]
WHAT'S IN THE BOX
  Included in Package 1 - backplane
    1 - SATA data cable
    2 - keys
    4 - screws
    1 - quick-start guide
More Information
GTIN065030872317
