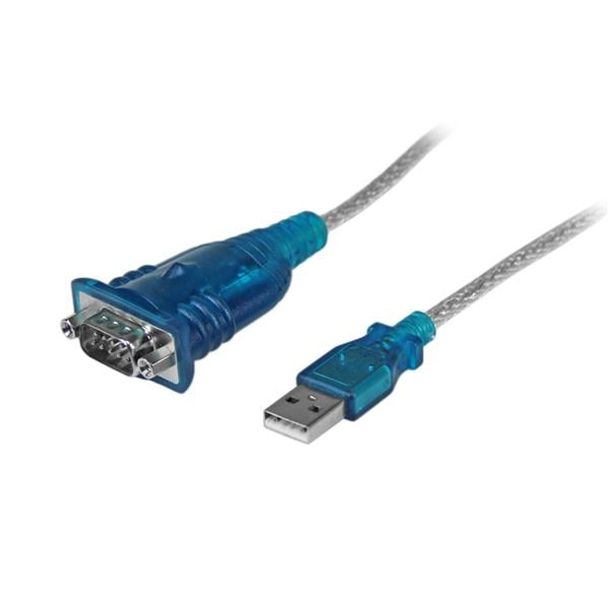

StarTech ICUSB232V2 1 Port USB to RS232 DB9 Serial Adapter
Model
ICUSB232V2
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | Available in 24 Hours |
$38.00
1 Port USB to RS232 DB9 Serial Adapter Cable - M/M
The ICUSB232V2 1 Port USB to Serial Adapter converts a USB port into an RS232 DB9 serial port to connect to, monitor, and control a serial device.
Supporting data transfer rates up to 921.6 Kbps, the USB to serial cable is a convenient and cost-saving solution for providing serial connectivity to devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.
The USB to RS232 converter is easy to install and offers broad operating system compatibility, including Windows® 8 and later, Linux and Mac OS®, for easy integration into mixed environments.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 3 Years | |
| HARDWARE | ||
| Bus Type | USB 2.0 | |
| Chipset ID | Prolific - PL2303RA | |
| Industry Standards | USB 1.1/2.0 RS232 |
|
| Interface | Serial | |
| Port Style | Cable Adapters | |
| Ports | 1 | |
| PERFORMANCE | ||
| Data Bits | 5, 6, 7, 8 | |
| FIFO | 512 Bytes | |
| Flow Control | None, Xon/Xoff, RTS/CTS, DTR/DSR | |
| Max Baud Rate | 921.6 Kbps | |
| MTBF | 30,000 Hours | |
| Parity | Odd, Even, Mark, Space, or None Parity Modes | |
| Serial Protocol | RS-232 | |
| Stop Bits | 1, 1.5, 2 | |
| CONNECTOR(S) | ||
| Connector A | 1 - USB Type-A (4 pin) USB 2.0 Male | |
| Connector B | 1 - DB-9 (9 pin, D-Sub) Male | |
| SOFTWARE | ||
| Microsoft WHQL Certified | Yes | |
| OS Compatibility | Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS® 9.x, 8.x, 10.6 to 10.14 Linux 2.4.31 to 4.11.x LTS Versions Only |
|
| SPECIAL NOTES / REQUIREMENTS | ||
| System and Cable Requirements | One available USB 1.1 (or above) port | |
| ENVIRONMENTAL | ||
| Humidity | 0~65% RH | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) | |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Enclosure Type | Plastic | |
| Product Height | 0.8 in [20 mm] | |
| Product Length | 16.9 in [430 mm] | |
| Product Weight | 1.4 oz [40 g] | |
| Product Width | 1.4 in [35 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 2 oz [56 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - USB to RS232 Adapter | |
| 1 - Instruction Manual | ||
| GTIN | 065030852609 |
|---|
