StarTech IDE2SAT2 40-Pin IDE to SATA Adapter Converter

Name: StarTech IDE2SAT2 40-Pin IDE to SATA Adapter Converter
Brand: StarTech
SKU: ADA-SATA-IDE2S2
Price: 35 AUD
Availability: InStock

Model

IDE2SAT2

Be the first to review this product

Location	Availability
Online (Delivery)	Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)	Available from Supplier (2 to 7 Working Days)
Preston (Pickup)	Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)	Available from Supplier (2 to 7 Working Days)

$35.00

40-Pin IDE PATA to SATA Adapter Converter - IDE to 2.5/3.5/5.25 SATA drive adapter with support for solid state drives (SSD) hard drives (HDD) and optical drives (ODD)

Details

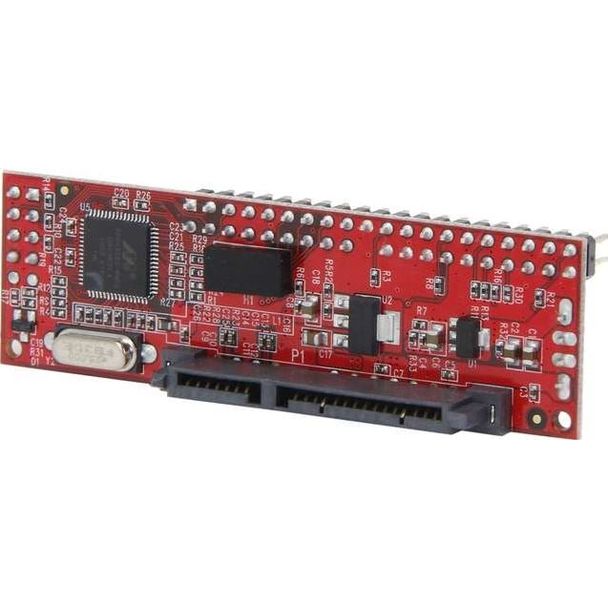

The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.

The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.

The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.

Applications

An internal solution for connecting your SATA hard drive to a motherboard supporting an IDE interface
Ideal for use with older motherboards that do not support SATA

Technical Specifications

WARRANTY INFORMATION
	Warranty	2 Years
HARDWARE
	Chipset ID	Marvell - 88SA8052
	Compatible Drive Types	SATA
	Drive Size	2.5in & 3.5in
	Interface	IDE
	Number of Drives	1
PERFORMANCE
	Maximum Data Transfer Rate	133MB/sec
	RAID	No
CONNECTOR(S)
	Connector Type(s)	1 - IDE (40 Pin, EIDE/PATA)
		1 - SATA Data & Power Combo (7+15 pin)
		1 - SP4 (4 pin, Small Drive Power)
SOFTWARE
	OS Compatibility	OS independent; No software or drivers required
SPECIAL NOTES / REQUIREMENTS
	System and Cable Requirements	An IDE controller and ATA cable (not included).
ENVIRONMENTAL
	Humidity	15~90% RH
	Operating Temperature	5°C to 50°C (40°F to 122°F)
	Storage Temperature	-25°C to 80°C (-13°F to 176°F)
PHYSICAL CHARACTERISTICS
	Enclosure Type	Steel and Plastic
	Product Height	0.9 in [23 mm]
	Product Length	3 in [75.5 mm]
	Product Weight	1 oz [29 g]
	Product Width	0.8 in [20 mm]
PACKAGING INFORMATION
	Shipping (Package) Weight	3.1 oz [89 g]
WHAT'S IN THE BOX
	Included in Package	1 - IDE to SATA adapter
		1 - LP4 Molex to SP4 Power Cable
		1 - Instruction Manual
