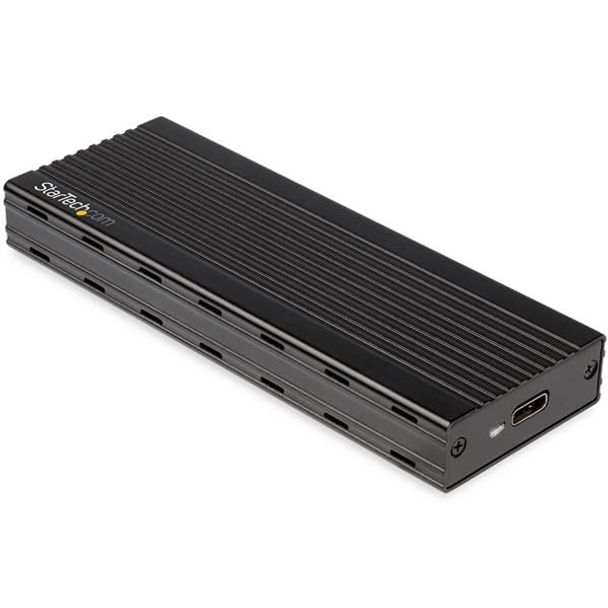

StarTech M2E1BMU31C Enclosure - M.2 NVMe SSD for PCIe SSDs

Model
M2E1BMU31C
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$95.00
M.2 NVMe SSD Enclosure for PCIe SSDs - USB 3.1 Gen 2 Type-C - External NVMe Enclosure - Thunderbolt 3 Compatible

This compact M.2 NVMe SSD Enclosure for PCIe SSDs is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.

Unparalleled Performance

Leverage the high speeds of your M.2 NVMe drive, with this external SSD enclosure. It delivers USB 3.1 Gen 2 read/write speeds up to 10Gbps, which is nearly twice the capability of traditional M.2 SATA enclosures.

This enclosure also features ventilation holes to help dissipate heat, ensuring an optimal operating temperature and helping to preserve performance.

Truly Portable

This slim, pocket-sized enclosure for PCIe based NVMe is specially designed for mobility, with a small form-factor design that fits easily into your laptop bag. Its lightweight, yet durable aluminum housing helps to ensure your drive won’t be damaged while you’re on the move.

Broad Compatibility

The M.2 NVMe enclosure works with tablets, laptops, desktop computers and hosts that are equipped with USB Type-C and Thunderbolt 3 ports. It's also backward compatible with USB 3.1 Gen 1, making it a convenient solution for the office or other workplace environments.

Additionally, the enclosure supports plug-and-play installation, making it the perfect accessory for professionals on the go.

M2E1BMU31C is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Create a portable, high-performance storage solution
  • Access your NVMe drive externally with ultra-fast transfer speeds
  • Superior speeds are ideal for data-migration related tasks
  • Ideal for professionals who require high-speed data access
  • Perfect for data recovery, backup or repair



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type USB 3.1 Gen 2
  Chipset ID ASMedia - ASM2362
  Compatible Drive Types M.2 (PCIe, NVMe, M-Key, NGFF)
  Drive Installation Fixed
  Drive Size 22 mm - M.2 NVMe
  Interface USB 3.1 Gen 2
  Number of Drives 1
  Supported Drive Height(s) 2230
    2242
    2260
    2280
PERFORMANCE
  4Kn Support Yes
  General Specifications Not compatible with M.2 SATA or AHCI based SSDs
  Maximum Data Transfer Rate 10 Gbps
  MTBF 233,398 Hours
  TRIM Support Yes
  Type and Rate USB 3.1 Gen 2 - 10 Gbit/s
    NVMe (PCIe Gen 3)
  UASP Support Yes
CONNECTOR(S)
  Host Connectors 1 - M.2 (PCIe, M-Key, NVMe, NGFF)
    1 - USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) Female
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
SPECIAL NOTES / REQUIREMENTS
  Note Windows 7 and earlier Windows versions do not support TRIM with USB storage devices.
INDICATORS
  LED Indicators 1 - Power & Activity
POWER
  Power Source USB-Powered
ENVIRONMENTAL
  Humidity Operation Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 95% RH
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -10°C to 65°C (14°F to 149°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Aluminum and Plastic
  Product Height 0.5 in [1.3 cm]
  Product Length 4.3 in [10.8 cm]
  Product Width 1.6 in [40 mm]
  Weight of Product 2.3 oz [65 g]
PACKAGING INFORMATION
  Package Height 1.4 in [35 mm]
  Package Length 6.1 in [15.4 cm]
  Package Width 4.2 in [10.6 cm]
  Shipping (Package) Weight 0.3 lb [0.2 kg]
WHAT'S IN THE BOX
  Included in Package 1 - Drive Enclosure
    1 - Set of M.2 Mounting Hardware (Installed)
    1 - Screwdriver
    1 - USB-C to USB-C Cable (50 cm)
    1 - Quick-Start Guide
More Information
GTIN065030875691
