StarTech MASFP10GBSR Cisco Meraki MA-SFP-10GB-SR Compatible SFP+ - 10GBase-SR -MM
Model
MASFP10GBSR
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$82.00
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty - 10 Gb Fiber SFP+ - MA-SFP-10GB-SR Compatible - MM LC

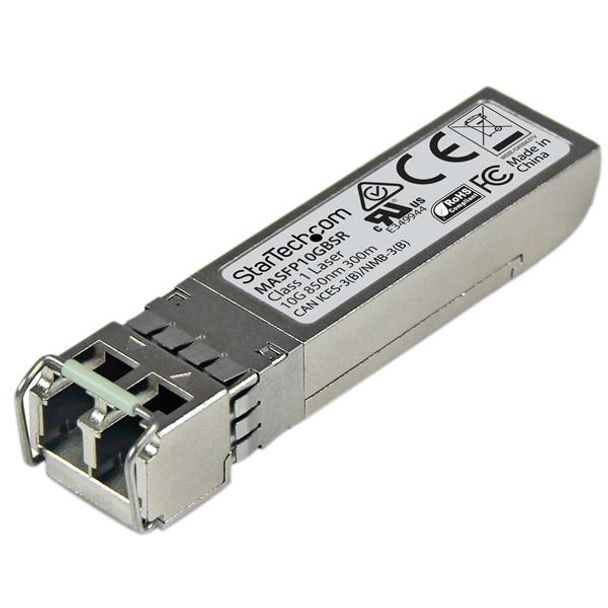

The MASFP10GBSR is a Cisco Meraki MA-SFP-10GB-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft). Technical Specifications:
- Wavelength: 850nm
- Maximum Data Transfer Rate: 10 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 300 m (984 ft)
- MTBF: 1,967,709 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
Specification
| Connector(s) | |
| Local Unit Connectors | Fiber Optic LC Duplex Female |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0 C to 70 C (32 F to 158 F) |
| Storage Temperature | -40 C to 85 C (-40 F to 185 F) |
| Hardware | |
| Compatible Brand | Cisco Meraki |
| Industry Standards | IEEE 802.3ae 10GBASE-SR |
| WDM | No |
| Packaging Information | |
| Package Height | 34 mm [1.3 in] |
| Package Length | 93 mm [3.7 in] |
| Package Width | 11.7 cm [4.6 in] |
| Shipping (Package) Weight | 47 g [1.7 oz] |
| Performance | |
| Compatible Networks | 10 Gbps |
| DDM | Yes |
| Fiber Operating Mode | Full-Duplex |
| Max Transfer Distance | 300 m (984 ft) |
| Maximum Data Transfer Rate | 10 Gbps |
| MTBF | 1,967,709 hours |
| Type | Multi Mode |
| Wavelength | 850nm |
| Physical Characteristics | |
| Color | Silver |
| Enclosure Type | Aluminum |
| Product Height | 1.3 cm [0.5 in] |
| Product Length | 54 mm [2.1 in] |
| Product Width | 13.9 mm [0.5 in] |
| Weight of Product | 18 g [0.6 oz] |
| Power | |
| Power Consumption (In Watts) | |
| Prominence | |
| Description CDW 75 - 1st Line | StarTech.com Cisco Meraki MA-SFP-10GB-SR Comp. Module |
| Special Notes / Requirements | |
| Note | For use in 10 Gigabit fiber networking equipment and media converters |
| System and Cable Requirements | MSA or Cisco compliant SFP+ port |
| What's in the Box | |
| Included in Package | SFP+ transceiver |
| GTIN | 065030869966 |
|---|
