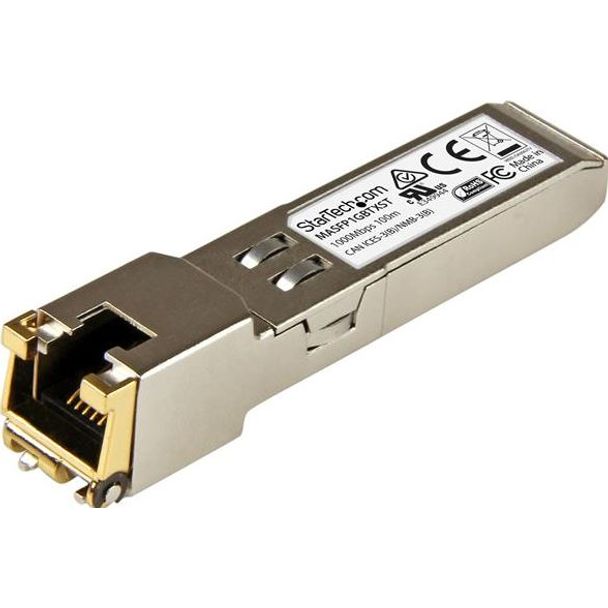

StarTech MASFP1GBTXST MA-SFP-1GB-TX 1000Base-T SFP Transceiver
Model
MASFP1GBTXST
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$79.00
Cisco Meraki MA-SFP-1GB-TX Compatible SFP - Gigabit RJ45 Copper 1000Base-T SFP Transceiver Module - 100 m (328 ft) - Mini-GBIC with Lifetime Warranty - Copper RJ45 SFP
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
- Maximum Data Transfer Rate: 1000 Mbps
- Type: Copper
- Connection Type: RJ45 Connector
- Maximum Transfer Distance: 100 m (328 ft)
- MTBF: 4,655,371 hours
- Power Consumption: Less than 1.3 Watts
- Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | Lifetime | |
| HARDWARE | ||
| Compatible Brand | Cisco Meraki | |
| Industry Standards | IEEE 802.3i 10BASE-T | |
| IEEE 802.3ab 1000BASE-T | ||
| IEEE 802.3u 100BASE-TX | ||
| PERFORMANCE | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| DDM | No | |
| Fiber Operating Mode | Full-Duplex | |
| Max Transfer Distance | 100 m (328 ft) | |
| Maximum Data Transfer Rate | 1000 Mbps | |
| MTBF | 4,655,371 hours | |
| Type | Copper | |
| CONNECTOR(S) | ||
| Local Unit Connectors | 1 - RJ-45 Female | |
| SPECIAL NOTES / REQUIREMENTS | ||
| System and Cable Requirements | MSA or Cisco Meraki compliant SFP port | |
| For use in 1 Gigabit networking equipment and media converters | ||
| POWER | ||
| Power Consumption (In Watts) | < 1.3 W | |
| ENVIRONMENTAL | ||
| Humidity | 5~95% RH | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Color | Silver | |
| Enclosure Type | Aluminum | |
| Product Height | 0.5 in [13.8 mm] | |
| Product Length | 2.7 in [68 mm] | |
| Product Weight | 0.7 oz [21 g] | |
| Product Width | 0.7 in [18 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 1.8 oz [51 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - SFP transceiver | |
| GTIN | 065030869461 |
|---|
