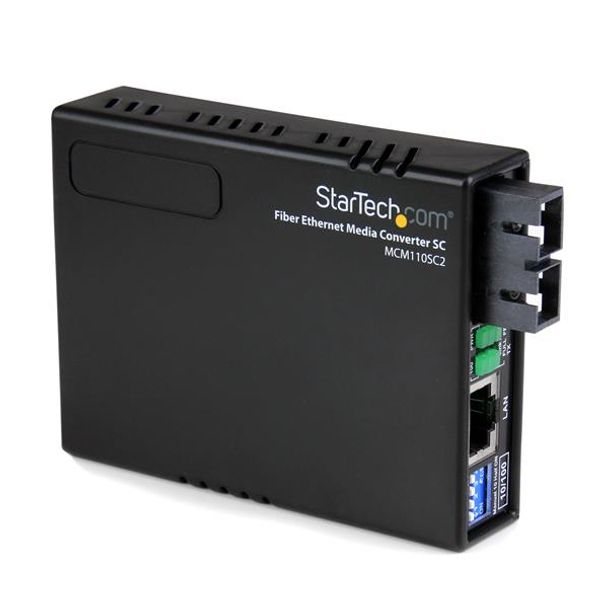

StarTech MCM110SC2 Fiber To ETHERNET MEDIA Converter SC

Model
MCM110SC2
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$136.40
StarTech MCM110SC2 FIBER TO ETHERNET MEDIA CONVERTER SC

The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.

This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Extend your Ethernet connection up to 2km away using fiber optics
  • Designed for large, high speed work groups that require expansion of fast Ethernet Networks
  • Connect via fiber optics two or more buildings on the same campus
  • Connect remote sub-networks to larger fiber optic networks/backbones



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Industry Standards IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-FX
    IEEE 802.3u 100BASE-TX
  PoE No
  WDM No
PERFORMANCE
  Fiber Operating Mode Half/Full-Duplex
  Max Transfer Distance 2 km (1.2 mi)
  Maximum Data Transfer Rate 10/100Mbps
  MTBF 65,000 Hours
  Type Multi Mode
  Wavelength 1310nm
CONNECTOR(S)
  Local Unit Connectors 1 - RJ-45 Female
  Remote Unit Connectors 1 - Fiber Optic SC Duplex Female
INDICATORS
  LED Indicators 1 - Ethernet Link & Activity (ON - Ethernet Link OK, Blinking - Activity on Ethernet Link)
    1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault
    1 - Fiber Link & Activity (On - Fiber Link OK, Blinking - Activity on Fiber Link)
    1 - Full ( Full duplex / Half duplex)
    1 - Power
    1 - Speed (Off - 10Mbps, On - 100 Mbps)
POWER
  Center Tip Polarity Positive
  Input Voltage 115V AC
  Output Current 0.2A
  Output Voltage 12 DC
  Plug Type M
  Power Consumption (In Watts) 2.4
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 10~90% RH
  Operating Temperature 0°C to 50°C (32°F to 122°F)
  Storage Temperature -10°C to 70°C (14°F to 158°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Plastic
  Product Height 0.8 in [20 mm]
  Product Length 3.7 in [95 mm]
  Product Weight 3 oz [84 g]
  Product Width 3 in [75 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 9.5 oz [269 g]
WHAT'S IN THE BOX
  Included in Package 1 - Media Converter
    1 - Power Adapter
    1 - User's Manual
