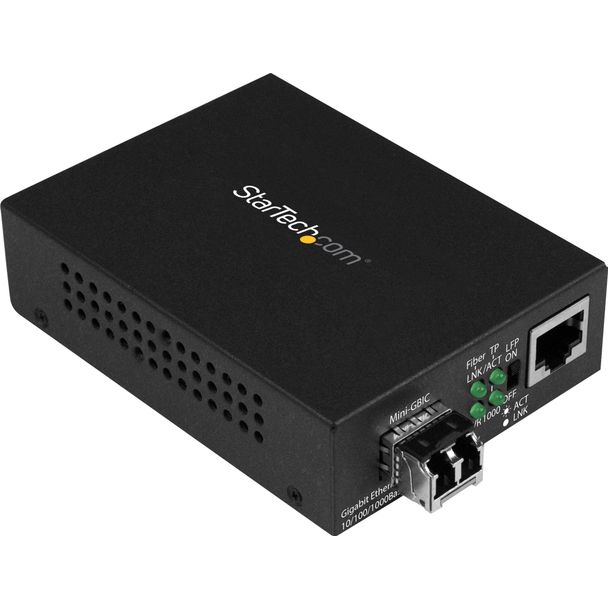

StarTech MCM1110MMLC Fiber Media Converter- 850nm MM LC- 550m

This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

Cost-effective extension and dependable performance

The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.

Versatile connections for broad compatibility

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network.  It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.

Easy installation and compact convenience

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.

The MCM1110MMLC is backed by a StarTech.com 2-year warranty and free lifetime technical support.



Applications

  • Extend or bridge networks using fiber cable
  • Provide connectivity to users in an isolated area of a large complex or in a separate building
  • Ideal for secure connections required by government or corporations where EMI is not acceptable



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Industry Standards IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3z 1000BASE-SX
    IEEE 802.3z 1000BASE-LX
  PoE No
  WDM No
PERFORMANCE
  Auto MDIX Yes
  Compatible Networks 10/100/1000 Mbps
  Fiber Operating Mode Full-Duplex
  Max Transfer Distance 550 m (1804 ft)
  Maximum Data Transfer Rate 1 Gbps
  MTBF > 50,000 hours at 25°C
  Type Multi Mode
  Wavelength 850nm
CONNECTOR(S)
  Local Unit Connectors 1 - RJ-45 Female
    1 - Fiber Optic LC Duplex Female
INDICATORS
  LED Indicators 1 - Power
    1 - Fiber Port Link/Act
    1 - Copper Port Link/Act
    1 - 1000 Mbps
POWER
  Center Tip Polarity Positive
  Input Current 1 A
  Input Voltage 100 ~ 240 AC
  Output Current 2 A
  Output Voltage 5 DC
  Plug Type N
  Power Consumption (In Watts) 5
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 5~95% RH (Non-condensing)
  Operating Temperature 0°C to 50°C (32°F to 122°F)
  Storage Temperature -10°C to 70°C (14°F to 158°F)
PHYSICAL CHARACTERISTICS
  Color Brown
  Enclosure Type Steel
  Product Height 1 in [26 mm]
  Product Length 3.7 in [94 mm]
  Product Weight 7.1 oz [201 g]
  Product Width 2.8 in [70 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 19.6 oz [556 g]
WHAT'S IN THE BOX
  Included in Package 1 - Gigabit Ethernet fiber media converter - MM LC
    1 - universal power adapter (NA/JP, EU, UK, ANZ)
