StarTech MDP2DVIMM3B 3ft Mini DisplayPort DP to DVI
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | In Stock |
West Melbourne (Pickup) | In Stock |

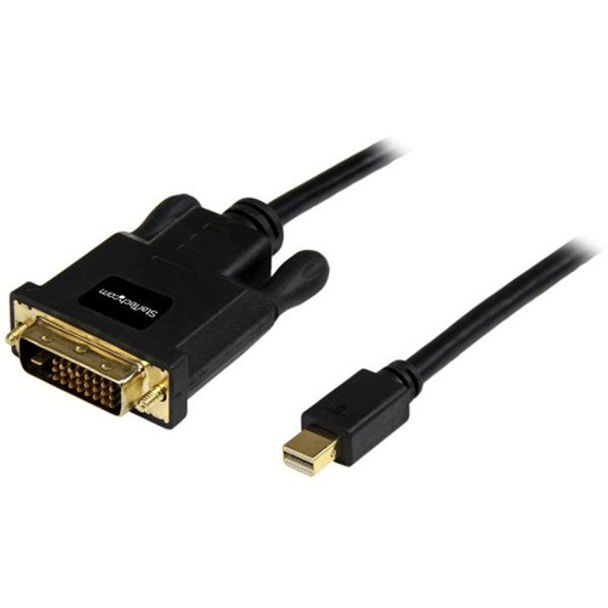

The MDP2DVIMM3B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (Desktop PC, Laptop, Ultrabook™, etc.) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 3 feet (1 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display device with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM3B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Active or Passive Adapter | Passive | |
| Adapter Style | Cable Adapters | |
| Audio | No | |
| AV Input | DisplayPort | |
| AV Output | DVI | |
| Chipset ID | NXP - 3361 | |
| PERFORMANCE | ||
| Maximum Cable Length | 3 ft [0.9 m] | |
| Maximum Digital Resolutions | 1920x1200 / 1080p | |
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Connector A | 1 - Mini-DisplayPort (20 pin) Male | |
| Connector B | 1 - DVI-D (25 pin) Male | |
| SPECIAL NOTES / REQUIREMENTS | ||
| System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through | |
| ENVIRONMENTAL | ||
| Humidity | 40%-85%RH | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) | |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 3 ft [0.9 m] | |
| Color | Black | |
| Product Height | 0.6 in [15 mm] | |
| Product Length | 36.2 in [920 mm] | |
| Product Weight | 2.5 oz [69.4 g] | |
| Product Width | 1.5 in [38 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 3 oz [86 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - Mini DisplayPort® to DVI Adapter | |
| GTIN | 065030851527 |
|---|
