StarTech MST14DP123HD DisplayPort to 3-Port 4K 60Hz HDMI MST Hub
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |

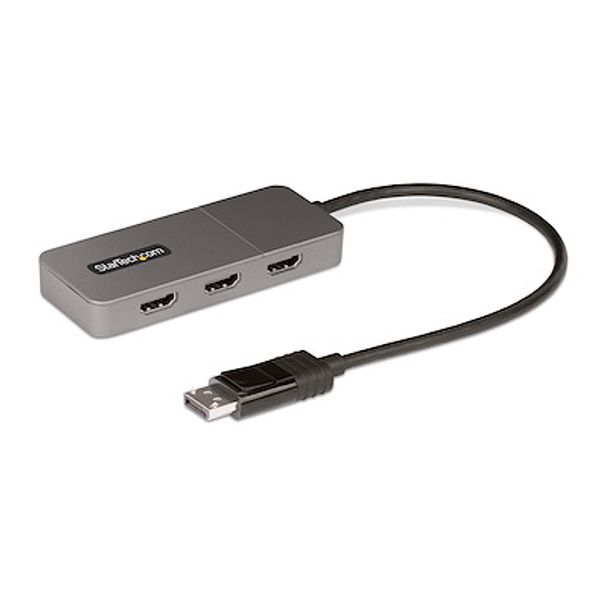

Connect three HDMI monitors to a DisplayPort-enabled host device, using this DisplayPort to HDMI MST Hub.
Drive Triple 4K 60Hz Displays with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each HDMI-enabled display. Support for High Dynamic Range (HDR) facilitates enhanced contrast, brightness, color, and luminosity.
|
Host Connection |
Maximum Resolution Output 1 |
Maximum Resolution Output 2 |
Maximum Resolution Output 3 |
Example Host Processor/Graphics |
|
DisplayPort 1.4 with DSC |
4K 60Hz |
4K 60Hz |
4K 60Hz |
Intel 12th Gen Processors & Later |
|
4K 60Hz |
4K 60Hz |
N/A |
Intel 11th Gen with DSC |
|
|
DisplayPort 1.4 |
4K 30Hz |
4K 30Hz |
4K 30Hz |
Intel 10th Gen (Ice Lake Only) |
|
DisplayPort 1.2 |
4K 30Hz |
4K 30Hz |
1080p |
Intel 8th - 10th Gen Processors & Later |
*Please verify the GPU capabilities and driver support for DSC through MST with the OEM of the host device
Multitasking Made Easy
Configure the triple-HDMI displays in extended or mirrored mode. Create a high-performance workstation by adding three independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Driverless for Rapid Deployment and Seamless User Setup Experience
This MST Hub achieves maximum performance with Windows desktops featuring Intel 12th generation (and later) processors, or dedicated graphics cards with DisplayPort 1.4 output ports and DSC support. Plug-and-play installation with no drivers or software required. The 12in (30cm) built-in DisplayPort cable provides options for flexible installation configurations, reducing the amount of strain on the port and connector. Additionally, this triple-monitor splitter is USB Powered and includes a 20inch (50cm) USB Micro-B power cable.
| GTIN | 065030897631 |
|---|
