StarTech NOTECONS01 KVM Console to USB Laptop Crash Cart

Model
NOTECONS01
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$779.00

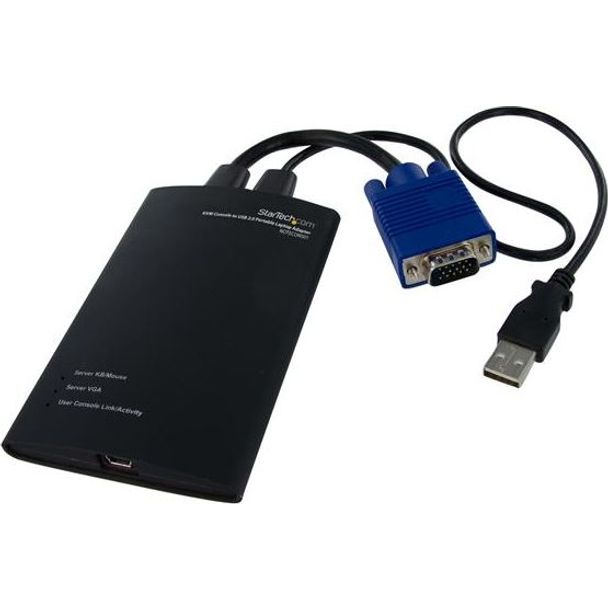

KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter - Laptop KVM Server Console Adapter

The NOTECONS01 KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter turns your notebook or netbook into a portable server crashcart, eliminating the need to lug around a large, heavy and awkward video screen, keyboard, and mouse. This adapter delivers the VGA stream from any host computer to a laptop and emulates the laptop mouse and keyboard outputs for simple access and control of connected servers, PCs or other "headless" devices.

With portability for the mobile administrator or repair technician in mind, this USB-powered adapter features a small-footprint design that requires no additional accessories to connect to most servers, and requires no server-side software installation. Plus, the pocket-sized adapter draws its power from the server-side USB connections, allowing the laptop/netbook to last longer without consuming battery power.

Ensuring full control of the connected units, the Laptop KVM Server Console Adapter provides immediate access to the POST screen and BIOS, plus the ability to handle full configuration of the attached PC or machine; administrators can connect to a headless server/device without the need of an expensive LCD rackmount console or bulky monitor, keyboard and mouse solution.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

How it works:
Laptop KVM - how it works

Applications

  • Eliminates the need for huge, bulky crash carts in the server room or distributed networks
  • Cost effective solution for areas where dedicated rack mounted LCD Consoles are too pricey or cumbersome to install
  • Headless Server maintenance
  • Mobile server repair
  • ATM and VLT maintenance and repair



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Audio No
  Cables Included Yes
  Daisy-Chain No
  KVM Ports 1
  Number of Monitors Supported 1
  PC Interface USB and PS/2
  PC Video Type VGA
  Rack-Mountable No
PERFORMANCE
  Hot-Key Selection No
  IP Control No
  Maximum Analog Resolutions 1920x1200 @ 60Hz
  Maximum Number of Users 1
  MTBF 284000 Hrs
  On-Screen Display No
CONNECTOR(S)
  Console Interface(s) 1 - USB Mini-B (5 pin) Female Input
  Host Connectors 1 - PS/2 (6 pin, Mini-DIN) Male
    1 - USB Type-A (4 pin) USB 2.0 Male
    1 - VGA (15 pin, High Density D-Sub) Male
SOFTWARE
  OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2016
Mac OS® 10.6 to 10.14
Linux 2.6.x to 4.11.x (LTS Versions Only)
SPECIAL NOTES / REQUIREMENTS
  Note If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration
INDICATORS
  LED Indicators 1 - Host/Server Keyboard/Mouse (USB,PS/2) Link
    1 - Host/Server Video (VGA) Link
    1 - User Console/USB Link
POWER
  Power Source USB-Powered
ENVIRONMENTAL
  Humidity 80% RH
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -40°C to 70°C (-40°F to 158°F)
PHYSICAL CHARACTERISTICS
  Cable Length 1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable
  Color Black
  Enclosure Type Plastic
  Product Depth 4.5 in [115 mm]
  Product Height 0.6 in [15 mm]
  Product Weight 6 oz [170 g]
  Product Width 2.9 in [74 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 0.9 lb [0.4 kg]
WHAT'S IN THE BOX
  Included in Package 1 - USB PS/2 KVM Console Adapter
    1 - USB Cable
    1 - USB to PS/2 Adapter
    1 - USB Software Key
