StarTech NOTECONS02X Laptop To Server KVM Console

Model
NOTECONS02X
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$1,040.50

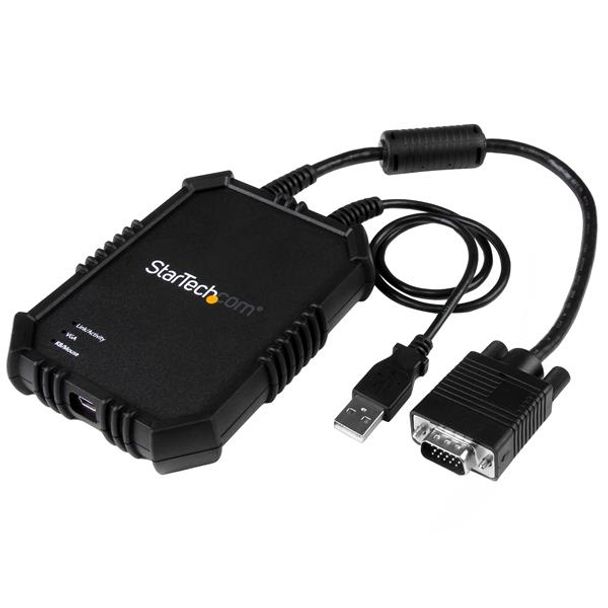

LAPTOP-TO-SERVER KVM CONSOLE WITH RUGGED HOUSING

This rugged and portable USB crash cart adapter lets you turn your laptop into a portable console for accessing servers, desktops and laptops, as well as ATMs, kiosks or any computing device that features both VGA and USB ports.

This adapter also supports local file transfer and video capturing built into the software.

Maximum durability

This crash cart adapter has been specifically designed for maximum durability. It features a rugged, rubberized housing that can handle drops by absorbing shock, to make sure that you’re equipped for unexpected challenges.

Hassle-free operation

Troubleshoot your devices quickly and easily. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server.

The crash cart adapter features a flexible software interface that offers robust performance. It enables you to transfer files from your laptop to the server, monitor and capture activity from the connected device as video for records or instructional purposes, and take screenshots and scale the display window to full-screen mode or smaller, without scroll bars.

Compact portability

This compact crash cart adapter lets you connect to a headless device using only a laptop, eliminating the need to lug around an awkward, traditional server room crash cart. With optimal portability in mind for your mobile administration or repairs, this pocket-sized adapter features a small footprint and lightweight design that easily fits inside your laptop bag.

The adapter is USB powered so you won't need to carry a power adapter. Plus, the KVM cables are attached to the crash cart adapter so you won't need additional accessories to connect it to your server. The built-in cables have been engineered with strain relief, preventing them from wearing or breaking.

Universal connectivity

With no server-side software installation required, the USB crash cart adapter provides BIOS-level control of any PC or device that has both a VGA port and a USB port.

The NOTECONS02X is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Travel to remote server rooms to perform on-site maintenance on a wide variety of servers and terminals
  • Keep your routine diagnostics and repairs portable, by replacing a bulky crash cart
  • Gain full console access to servers located in small spaces, or congested server racks where a fixed-installation console is not feasible
  • Perform maintenance on headless servers or other computers, such as ATMs and VLT terminals, that don’t support a monitor, keyboard or mouse



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Audio No
  Cables Included Yes
  Daisy-Chain No
  KVM Ports 1
  Number of Monitors Supported 1
  PC Interface USB
  PC Video Type VGA
  Rack-Mountable No
PERFORMANCE
  Hot-Key Selection No
  IP Control No
  Maximum Analog Resolutions 1920x1200 @ 60Hz
  Maximum Number of Users 1
  On-Screen Display No
CONNECTOR(S)
  Console Interface(s) 1 - USB Mini-B (5 pin) Female Input
  Host Connectors 1 - USB Type-A (4 pin) USB 2.0 Male
    1 - VGA (15 pin, High Density D-Sub) Male
SOFTWARE
  OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.9 to 10.14
Linux 2.6 to 4.11 LTS versions only
SPECIAL NOTES / REQUIREMENTS
  Note If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration
INDICATORS
  LED Indicators 1 - Host/Server Keyboard/Mouse USB Link
    1 - Host/Server Video (VGA) Link
    1 - User Console/USB Link
POWER
  Power Source USB-Powered
ENVIRONMENTAL
  Humidity 80% RH
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -40°C to 70°C (-40°F to 158°F)
PHYSICAL CHARACTERISTICS
  Cable Length 16.4 in [416 mm]
    1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable
  Color Black
  Enclosure Type Plastic
  Product Depth 4.5 in [115 mm]
  Product Height 0.9 in [22 mm]
  Product Length 4.9 in [125 mm]
  Product Weight 8.6 oz [244 g]
  Product Width 3.5 in [88 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 1 lb [0.5 kg]
WHAT'S IN THE BOX
  Included in Package 1 - Rugged crash cart adapter
    1 - USB A to Mini-B cable
    1 - USB software key
    1 - Quick start guide
More Information
GTIN065030862240
