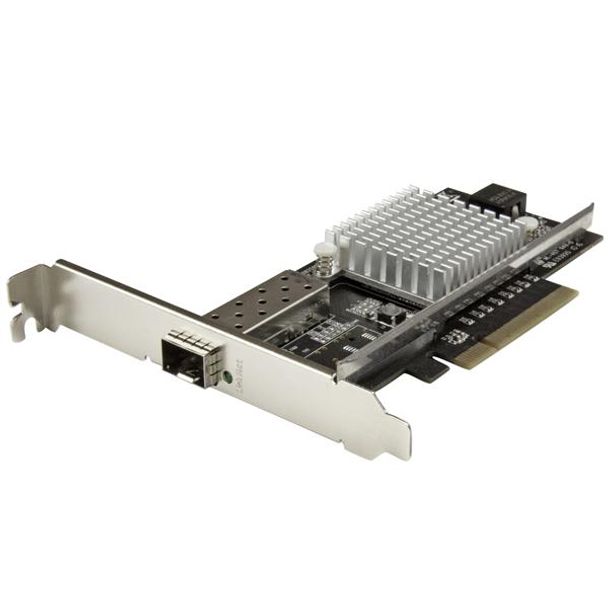

1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM - PCI Express 10G NIC with Open SFP+ - Compatible with SR or LR Transceivers - 10G Ethernet Network Adapter

This fiber network card delivers reliable, high-performance network connectivity, by adding an open SFP+ slot to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade your server or workstation to a 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multimode or single-mode fiber.

Increase your network speed

Several factors drive the need for more bandwidth in your network infrastructure. An increase in the number of network users and data-intensive applications, such as multimedia streaming and large file transfers all contribute to the need for more bandwidth in your network infrastructure. This fiber NIC lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.

Add scalable network connections to your server or workstation

The fiber NIC is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options for connecting your computer directly to a fiber network, at greater distances.

The card features an open SFP+ slot with support for one interchangeable 10GBase SFP+ module. This gives you the option to use the fiber transceiver module that best suits your network needs based on distance and connector type. StarTech.com offers a variety of SFP+ transceiver modules including the SFP10GLRST single-mode SFP+ the SFP10GLRMST multi-mode SFP+, and SFP10GSRST multimode LC with DDM.

In addition, StarTech.com provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities

The 10 Gigabit network card features the Intel® 82599 chipset, delivering the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 15K jumbo frame support.

The PEX10000SFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Add 10Gbps network connectivity to file or application servers and high-performance workstations
  • Transmit full 10 Gigabit network speeds to a remote terminal over longer distances than copper cabling
  • Supports secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
  • Upgrade your onboard network adapter to 10 Gigabit SFP+, for faster communication
  • Create a video / audio editing console with 10Gbps access to network storage
  • Ideal for remote embedded industrial monitoring systems, and high-speed video surveillance


Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type PCI Express
  Card Type Standard Profile (LP bracket incl.)
  Chipset ID Intel - 82599
  Industry Standards IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM)
PCI Express Rev 2.0, using PCIe x8 (or higher) slot
  Interface Fiber (10 Gigabit Ethernet)
  Ports 1
PERFORMANCE
  Compatible Networks 10 Gbps
  Full Duplex Support Yes
  Jumbo Frame Support 15K max.
  Maximum Data Transfer Rate 10 Gbps
  Promiscuous Mode Yes
  Supported Protocols IEEE 802.3ad (Link Aggregation)
IEEE 802.3x (Flow Control Support)
IEEE 802.1Q (VLAN tagging)
CONNECTOR(S)
  Connector Type(s) 1 - PCI Express x8 Male
  Internal Ports 1 - SFP+ Slot Female
SOFTWARE
  OS Compatibility Windows® 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016
Linux 2.6.24 to 4.11.x LTS Versions only
ENVIRONMENTAL
  Humidity 20% ~ 80% RH
  Operating Temperature 5°C to 50°C (41°F to 122°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Product Height 4.7 in [120 mm]
  Product Length 5.3 in [135 mm]
  Product Weight 3.6 oz [102 g]
  Product Width 0.7 in [18 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 6.3 oz [178 g]
WHAT'S IN THE BOX
  Included in Package 1 - 10G open SFP+ fiber network card
    1 - low-profile bracket
    1 - quick-start guide
