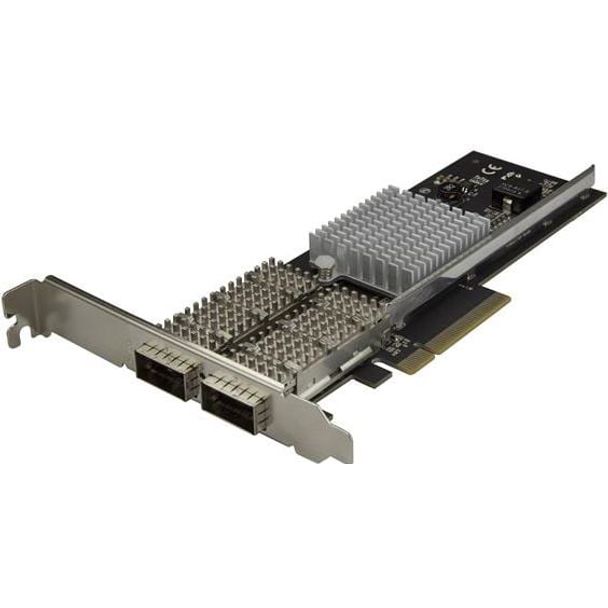

StarTech PEX40GQSFDPI Server NIC Card 40G Dual-Port QSFP+

Model
PEX40GQSFDPI
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$1,038.50
Dual Port QSFP+ Server NIC Card - Intel XL710 Chip - 40gb NIC - PCIe Network Card - Network Interface Card - Server NIC

Get fast, high-bandwidth connectivity with this dual-port QSFP+ Network Interface Card. It adds two open QSFP+ slots to your server or workstation. The 40G NIC features an Intel® controller and provides redundant network links with reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.

Increase your network speed

This dual port QSFP+ server NIC card lets you take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps.

Add redundant connections in zero-downtime environments

With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.

Add scalable network connections

With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.

Enhance your network capabilities

The 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.

The PEX40GQSFDPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Add ultra-fast 40Gbps network connectivity to database, file or application servers and high-performance workstations
  • Transmit full 40Gpbs network speeds to a remote terminal over longer distance than copper cabling
  • Ideal for agile and high-demand data centers that require data security, no downtime, and infrastructure updates
  • Supports secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
  • Create a video/audio editing console with 40Gbps access to network storage
  • Ideal for remote embedded industrial monitoring system, and high-speed video surveillance




Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type PCI Express
  Card Type Standard Profile (LP bracket incl.)
  Chipset ID Intel - XL710-BM2
  Industry Standards IEEE 802.3ba 40GBASE-SR4
IEEE 802.3ba 40GBASE-LR4
PCI Express Rev 3.0, using PCIe x8 (or higher) slot
  Ports 2
PERFORMANCE
  Compatible Networks 40 Gbps
  Full Duplex Support Yes
  Jumbo Frame Support 9K max.
  PXE No
  Supported Protocols IEEE 802.3ad (Link Aggregation)
IEEE 802.3x (Flow Control Support)
IEEE 802.1Q (VLAN tagging)
CONNECTOR(S)
  Connector Type(s) 1 - PCI Express x8 Male
    2 - QSFP+ Female
SOFTWARE
  OS Compatibility Windows® 7, 8, 8.1, 10 (64-bit Only)
Windows Server® 2008 R2, 2012, 2012 R2, 2016 (64-bit Only)
Linux 2.6.24 to 4.11.x (64-bit Only)LTS Versions only
INDICATORS
  LED Indicators 2 - Link/Activity (green)
ENVIRONMENTAL
  Humidity 5~95% RH
  Operating Temperature 0°C to 57°C (32°F to 134.6°F)
  Storage Temperature -20°C to 85°C (-4°F to 185°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Product Height 0.8 in [21 mm]
  Product Length 7.1 in [181 mm]
  Product Weight 4.5 oz [127 g]
  Product Width 4.8 in [121 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 7.5 oz [212 g]
WHAT'S IN THE BOX
  Included in Package 1 - network card
    1 - low-profile bracket
    1 - quick-start guide
