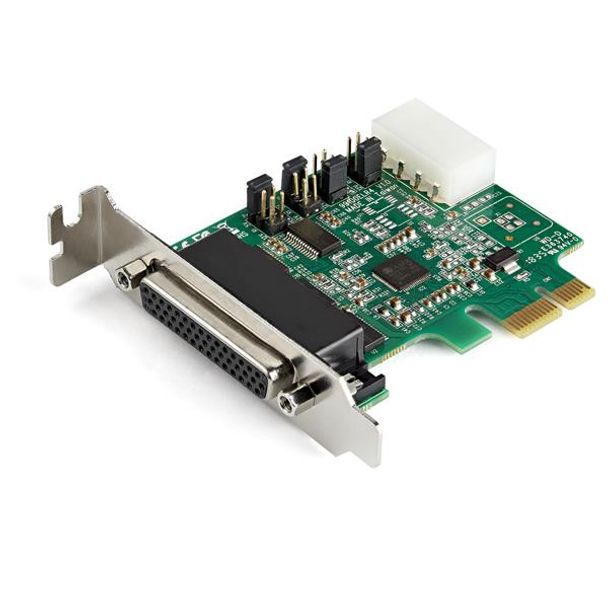

Startech PEX4S953LP PCIE LP RS232 Card Asix AX99100
Model
PEX4S953LP
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$197.30
4-Port PCI Express RS232 Serial Adapter Card - 16950 UART - 256-byte FIFO Cache - ASIX AX99100 - Low Profile Bracket - Replacement for PEX4S952LP (PEX4S953LP)
PCI Express to Serial Adapter | 921.6Kbps | Windows? and Linux? Compatible
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | Lifetime | |
| HARDWARE | ||
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Chipset ID | Asix AX99100 | |
| Interface | Serial | |
| Port Style | Integrated on Card | |
| Ports | 4 | |
| PERFORMANCE | ||
| Data Bits | 5, 6, 7, 8, 9 | |
| FIFO | 256 Bytes | |
| Flow Control | None, Xon/Xoff, RTS/CTS | |
| Max Baud Rate | 921.6 Kbps | |
| Parity | None, Odd, Even, Space, Mark | |
| Serial Protocol | RS-232 | |
| Stop Bits | 1, 1.5, 2 | |
| CONNECTOR(S) | ||
| Connector Type(s) | 1 - PCI Express x1 Male | |
| External Ports | 4 - DB-9 (9 pin, D-Sub) Male | |
| Internal Ports | 1 - LP4 (4 pin; Large Drive Power) Male Input | |
| SOFTWARE | ||
| Microsoft WHQL Certified | Yes | |
| OS Compatibility | Windows® 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Linux 2.4.x to 2.6.x LTS Versions only |
|
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | Selectable power output on pin 9 of the serial port | |
| ENVIRONMENTAL | ||
| Humidity | 5~85% RH | |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) | |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Product Height | 0.7 in [1.8 cm] | |
| Product Length | 2.5 in [6.3 cm] | |
| Product Width | 3 in [7.5 cm] | |
| Weight of Product | 9.3 oz [264 g] | |
| PACKAGING INFORMATION | ||
| Package Height | 2 in [51 mm] | |
| Package Length | 5.9 in [149 mm] | |
| Package Width | 8.4 in [213 mm] | |
| Shipping (Package) Weight | 13.1 oz [370 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - 4-Port Low Profile Serial Card | |
| 1 - 4-Port DB9 Break-out Cable | ||
| 1 - Full Profile Bracket | ||
| 1 - Quick-Start Guide | ||
| GTIN | 065030887052 |
|---|
