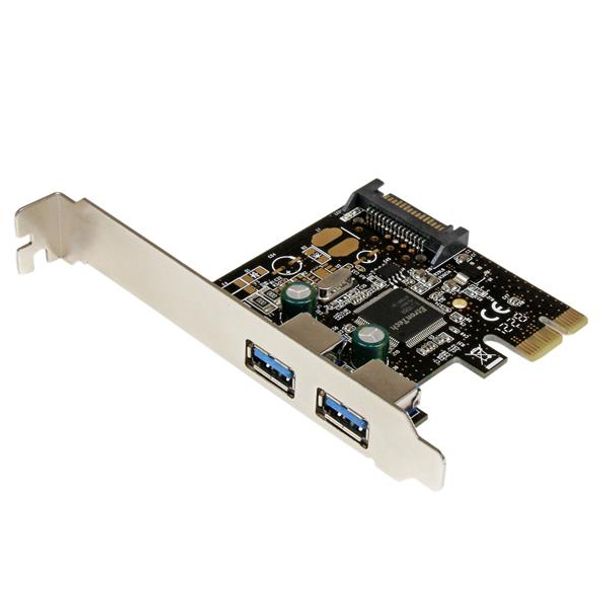

StarTech PEXUSB3S23 2 Port PCIe USB 3.0 Card w/ SATA Power
Model
PEXUSB3S23
| Location | Availability |
|---|---|
Online (Delivery) | End of Life |
Notting Hill (Pickup) | End of Life |
Preston (Pickup) | End of Life |
West Melbourne (Pickup) | End of Life |
$35.00
2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Controller Card w/ SATA Power - PCIe USB 3.0 Card - Dual Port PCI Express USB 3 Adapter - 5 Gbps USB 3.0 PCIe Controller
The PEXUSB3S23 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Chipset ID | Etron - EJ168A | |
| Interface | USB 3.0 | |
| Port Style | Integrated on Card | |
| Ports | 2 | |
| PERFORMANCE | ||
| Maximum Cable Length | 9.8 ft [3 m] | |
| Type and Rate | USB 3.0 - 5 Gbit/s | |
| UASP Support | No | |
| CONNECTOR(S) | ||
| Connector Type(s) | 1 - PCI Express x1 Male | |
| External Ports | 2 - USB Type-A (9 pin) USB 3.0 Female | |
| Internal Ports | 1 - SATA Power (15 pin) Plug | |
| SOFTWARE | ||
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 |
|
| SPECIAL NOTES / REQUIREMENTS | ||
| System and Cable Requirements | Available 15-pin SATA power connector | |
| Available PCI Express slot | ||
| ENVIRONMENTAL | ||
| Humidity | 10~90% RH, Non-condensing | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) | |
| Storage Temperature | 0°C to 80°C (32°F to 176°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Product Height | 4.7 in [120 mm] | |
| Product Length | 3.1 in [80 mm] | |
| Product Weight | 1.5 oz [43 g] | |
| Product Width | 0.8 in [21 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 4.6 oz [130 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - PCI Express USB 3.0 card | |
| 1 - Low Profile Bracket | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| GTIN | 065030851633 |
|---|
