Startech PROJWALLMNT Projector Wall Mount Extends to 27.7

Model
PROJWALLMNT
LocationAvailability
Online (Delivery)
Preorder
Notting Hill (Pickup)
Preorder
Preston (Pickup)
Preorder
West Melbourne (Pickup)
Preorder
$342.20

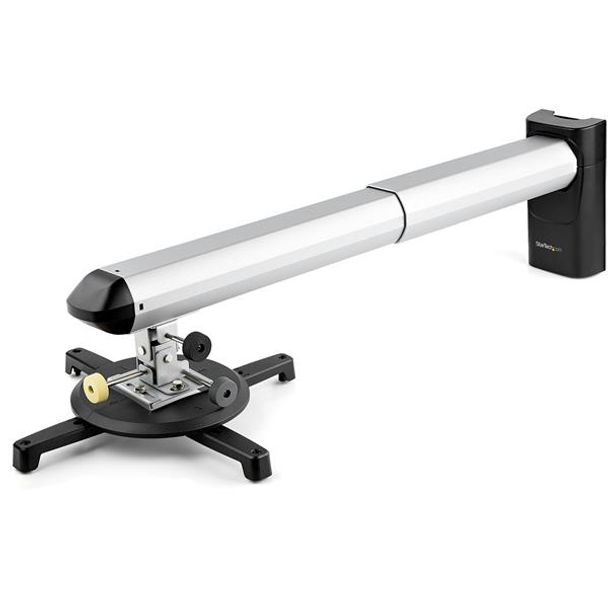

Projector Wall Mount - Adjustable Projector Arm Mount - Up to 27.7 Extension from Wall - Steel/Aluminum (PROJWALLMNT)

The adjustable mount for short throw projectors helps you create a large image from a short distance and keeps your projector out of the way. It’s ideal for classrooms, boardrooms, hospitality venues, and many other meeting spaces.

Wide Compatibility with Short Throw Projectors

Supporting a wide range of projector brands, the short throw projector wall mount features a universal mounting pattern of 12.8" (325 mm) diameter and supports a weight capacity of 33.3 lb. (15 kg).

Adjust the Distance from the Wall

Adjust the distance of your projector from the wall using the telescopic arm, which extends from 16.5” to 27.7” (420 mm to 705 mm). The arm on the low-profile projector wall mount also tilts +5/- 5 degrees to help you find the ideal position. The lockable ball joint on the adjustable projector mount provides 360-degree swivel, +/- 25 degree horizontal / vertical tilt.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

PROJWALLMNT is backed by a StarTech.com 2-year warranty and free, lifetime technical support

Applications

  • Mount a short throw projector in classrooms, lecture halls, or hospitality venues
  • Ideal for boardrooms, lobbies, meeting rooms or other business applications



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
PERFORMANCE
  Lockable Ball Joint 360° Swivel, +/- 25° Horizontal & Vertical Tilt
  Maximum Arm Extension 27.8 in [705 mm]
  Minimum Arm Extension 16.5 in [420 mm]
  Supports Short-Throw Ratio 0.4:1
  Universal Mounting Pattern 325 mm Diameter (12.8")
  Wall Mount Arm Tilt +/- 5°
  Weight Capacity 15kg (33.1 lb.)
ENVIRONMENTAL
  Humidity 40~60% RH
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Material Steel, Aluminum and Plastic
  Product Height 7.7 in [19.5 cm]
  Product Length 28.9 in [73.5 cm]
  Product Width 7.1 in [18 cm]
  Weight of Product 120.5 oz [3414 g]
PACKAGING INFORMATION
  Package Height 5.7 in [14.5 cm]
  Package Length 22.4 in [57 cm]
  Package Width 11.2 in [28.5 cm]
  Shipping (Package) Weight 154.8 oz [4386 g]
WHAT'S IN THE BOX
  Included in Package 1 - Wall Bracket
    1 - Projector Pole
    1 - Pole End Cap
    1 - Upper, Decorative Wall Cover
    1 - Lower, Decorative Wall Cover
    1 - Adjustment Module
    1 - Right, Adjustment Module Cover
    1 - Left, Adjustment Module Cover
    4 - Mounting Arms
    4 - Mounting Arm Covers
    1 - Hinge Connector
    6 - Wall Anchors
    4 - Washers
    6 - Mounting Screws
    1 - Wrench (10mm)
    1 - 5 mm Hex Key
    4 - M3 x 24 mm Screws
    4 - M4 x 24 mm Screws
    4 - M5 x 24 mm Screws
    4 - M6 x 8 mm Hex Screws
    2 - M6 x 10 mm Screws
    1 - M6 x 24 mm Screws
    1 - M6 x 25 mm Hex Screw
    4 - Nuts
    1 - User Manual
More Information
GTIN065030884143
