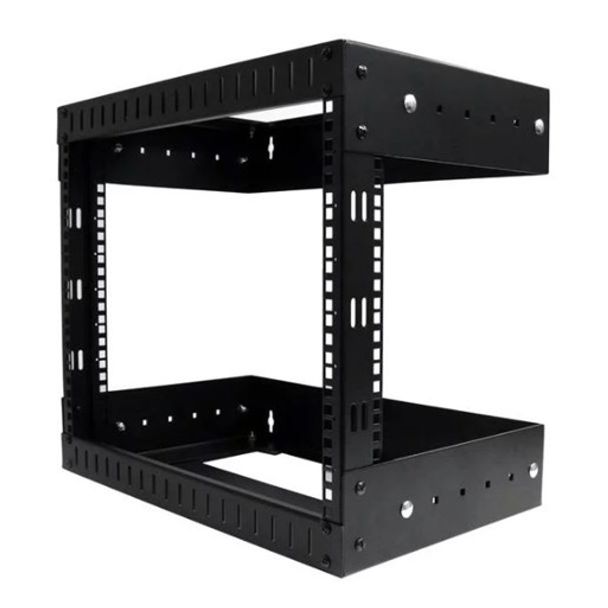

StarTech RK812WALLOA 8U Open Frame Wall Mount Equipment Rack

Model
RK812WALLOA
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$460.90
8U Open Frame Wall Mount Equipment Rack - Adjustable Depth

The RK812WALLOA 8U Open Frame Wall Mount Equipment Rack with Adjustable Depth is a high-quality, sturdy relay rack solution that is easy to assemble and install into any environment. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

The open rack features an adjustable depth ranging from 12-20 inches, in order to accommodate larger data, network and telecommunications devices. The greater than average depth of the rack also allows for mounting of shelves and other accessories. The wall mounts are positioned 16in apart (center to center), making it suitable for mounting on virtually any wall surface, based on North American wall frame stud spacing standards.

This 8U rack can be mounted to the wall in a server room, office, or above a doorway, expanding your workspace and keeping your equipment easily accessible.

Backed by a StarTech.com lifetime warranty.

Applications

  • Perfect for installing network switches out of the way and high up on a wall in a branch office, warehouse, or superstore location
  • Mount Audio/Video broadcast or distribution components
  • Ideal for small and medium businesses requiring small rack solutions dispersed throughout the organization



Technical Specifications

WARRANTY INFORMATION
  Warranty Lifetime
HARDWARE
  Adjustable Mounting Rails No
  Cable Management No
  Casters No
  Fan(s) No
  Frame Type Open Frame
  Front Door Construction Open
  Industry Standards EIA-310-D
    EIA RS310-C
  Ladder Offset 0 in [0 mm]
  Ladder Type G-Shape G-Shape offset: 0.35 in [9 mm]
  Mounting Holes Square
  Number and Type of Included Cage Nuts 16 - M5
  Rack Type 2-Post
  Tools Included No
  U Height 8U
  U Markings No
  Wallmountable Yes
PERFORMANCE
  Weight Capacity (Stationary) 135.3 lb [61.2 kg]
SPECIAL NOTES / REQUIREMENTS
  Note Hardware to mount the rack to the wall is not provided
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Steel
  Internal Depth 11.7 in [297 mm]
  Internal Width 19.7 in [500 mm]
  Maximum Mounting Depth 19.7 in [500 mm]
  Product Height 17.9 in [455 mm]
  Product Length 12 in [305 mm]
  Product Weight 24.4 lb [11.1 kg]
  Product Width 19.8 in [504 mm]
  Rail Thickness 0.1 in [2 mm]
PACKAGING INFORMATION
  Flat Pack (Assembly Required) No
  Shipping (Package) Weight 28.8 lb [13 kg]
WHAT'S IN THE BOX
  Included in Package 1 - wall mount rack
    16 - assembly screws
    16 - M5 screws
    16 - M5 cage nuts
    8 - truss head screws
    1 - installation guide
