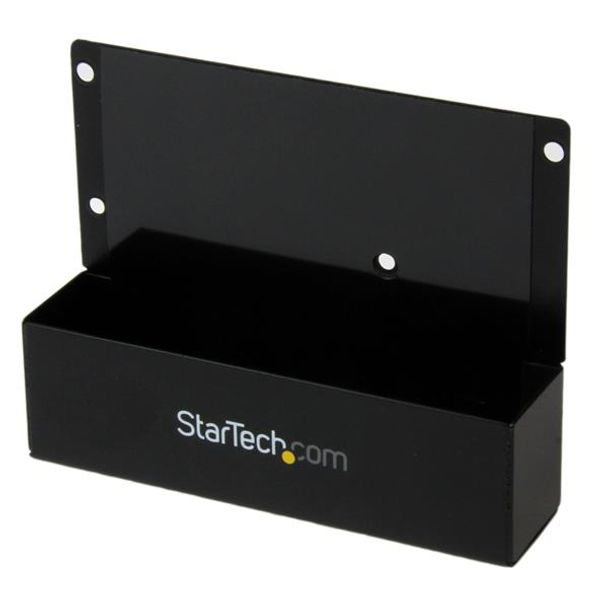

StarTech SAT2IDEADP SATA to 2.5/3.5 IDE Hard Drive Adapter

StarTech SAT2IDEADP SATA to 2.5/3.5 IDE Hard Drive Adapter

Model
SAT2IDEADP
Be the first to review this product
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
Available in 24 Hours
West Melbourne (Pickup)
In Stock
$46.00
Add to Wish List Add to Compare
SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).

The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.

The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators, including:

  • SATDOCK2REU3
  • SDOCK2U33
  • SDOCKU33EBV
  • UNIDOCKU33
  • SATADOCK22UE
  • SATDOCK2UEGB
  • SATDOCK22RE
  • SATDOCK22R
  • SATDOCKU3S
  • SATADOCKU2
  • SATADOCKU2E
  • SATDOCK4U2E
  • SATDOCK4U3E
  • SATDOCKCRH
  • SATDOCKU3E
  • SATDOCKU2EGB
  • SATDOCKU2GB

Backed by 2-year warranty and free, lifetime technical support.



Applications

  • Use old IDE/PATA hard drives in a SATA hard drive docking station
  • Install an IDE/PATA hard drive into a computer with only SATA ports
  • Easily recover data from a 2.5in (laptop) IDE hard drive, by connecting it to a SATA-enabled computer or docking station
  • Technicians who are required to work with a wide variety of old and new technologies


Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Chipset ID JMicron - JM20330
  Compatible Drive Types IDE (ATA)
  Drive Installation Fixed
  Drive Size 2.5in & 3.5in
  Fan(s) No
  LBA support 48-bit
  Number of Drives 1
CONNECTOR(S)
  Connector Type(s) 1 - SP4 (4 pin, Small Drive Power) Male
  Drive Connectors 1 - IDE (40 Pin, EIDE/PATA) Female
    1 - IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female
    1 - LP4 (4 pin; Molex-type Large Drive Power) Female
  Host Connectors 1 - SATA (7 pin, Data) Plug
    1 - SATA Power (15 pin) Plug
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
ENVIRONMENTAL
  Humidity 8% ~ 90% RH
  Operating Temperature 5°C to 80°C (41°F to 176°F)
  Storage Temperature -40°C to 70°C (-40°F to 158°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Steel
  Product Height 1 in [26 mm]
  Product Length 4 in [101 mm]
  Product Weight 3.7 oz [104 g]
  Product Width 3.1 in [78 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 7.7 oz [218 g]
WHAT'S IN THE BOX
  Included in Package 1 - SATA to IDE adapter
    1 - 40-pin IDE cable
    1 - 40-pin to 44-pin IDE cable with power
    1 - SP4 to LP4 Power cable
    1 - Package of mounting screws
    1 - Instruction Manual
