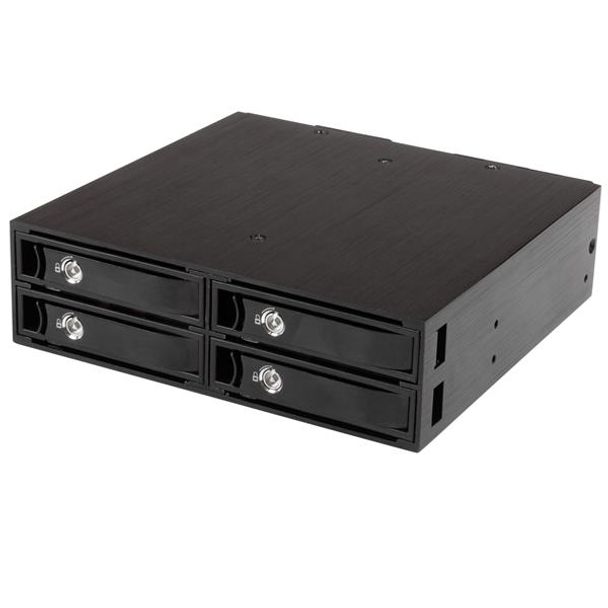

StarTech SATSASBP425 4-Bay Backplane for 2.5in SATA/SASDrives

Now it’s easy to drive share and enhance the storage capabilities of your server or PC. This mobile rack backplane lets you install four 2.5in SATA or SAS solid-state or hard disk drives into a single 5.25in bay and quickly hot swap them between systems. It’s ideal for systems integrators and administrators who are looking for flexible management of their data storage.

Designed for durability and trouble-free use

The mobile rack backplane is engineered to protect your valuable data and provide reliable performance. The aluminum housing is designed for enhanced heat dissipation, while two 40mm fans improve air flow to minimize heat build-up and ensure optimum operating temperature.

The 4-bay backplane can be mounted vertically or horizontally in your server or desktop computer

The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers. You can lock the removable steel trays in place, providing an enhanced level of drive protection.  The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drives and the bay.

Convenient, interchangeable drive trays

Many fast-paced work environments require drives to be removed regularly. Hot swap between systems quickly, without shutting down, with the convenient backplane.

The drive trays are interchangeable with the 4-bay and one-bay backplane

The included drive trays are interchangeable, working with both the 4-bay backplane and the single-bay backplane (SATSASBP125) so you can hot swap between systems for easy file access.

Compatible with a wide range of drives

Designed for versatile use, the backplane supports an extensive range of both SATA or SAS based HDDs and SSDs, from 5 to 15mm in height.

To maximize the performance of your drives, the mobile rack supports SAS II and SATA III performance for transfer speeds up to 6 Gbps when paired with a compatible controller. The backplane also works with your preferred RAID controller or Hyper Duo™ controller to produce a high-performance or redundant storage solution.

The SATSASBP425 backplane is backed by a StarTech.com 2-year warranty and free lifetime technical support.



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Compatible Drive Types SAS & SATA
  Drive Installation Removable
  Drive Size 2.5in
  Fan Bearing Type Sleeve Bearing
  Fan(s) Yes
  Fans 2 - 40 mm
  Front Door Key Lock Yes
  Interface SATA
    SAS
  Number of 2.5 inch bays 4
  Number of Drives 4
  Supported Drive Height(s) 5mm
    9.5mm
    12.5mm
    15mm
PERFORMANCE
  Hot Swap Capability Yes
  Insertion Rating 50,000
  Max Drive Capacity Tested with hard drives up to 2TB at 7200 RPM
  Maximum Data Transfer Rate 6 Gbps
  MTBF 30,000
  Noise Level 20 dBA
  Port Multiplier No
  Type and Rate SATA III (6 Gbps)
CONNECTOR(S)
  Drive Connectors 4 - SATA Data & Power Combo (7+15 pin) Receptacle
  Host Connectors 4 - SATA (7 pin, Data) Receptacle
  Other Interface(s) 1 - LP4 (4 pin; Molex-type Large Drive Power) Female
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
SPECIAL NOTES / REQUIREMENTS
  Note Flammability rating: UL94 - V0
INDICATORS
  LED Indicators 4 - Drive power and activity LED
    1 - Fan activity
ENVIRONMENTAL
  Humidity 5%~65% RH
  Operating Temperature 0°C to 55°C (23°F to 95°F)
  Storage Temperature -20°C to 55°C (-4°F to 131°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Aluminum and Steel
  Max Drive Height 0.6 in [15 mm]
  Product Height 1.7 in [42 mm]
  Product Length 6 in [151.5 mm]
  Product Weight 26.8 oz [760 g]
  Product Width 5.7 in [146 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 2.3 lb [1 kg]
WHAT'S IN THE BOX
  Included in Package 1 - 4-bay SATA/SAS hard drive backplane
    2 - drive tray keys
    4 - 2.5" drive trays
    4 - 18" SATA data cables
    2 - SATA to Molex power adapters
    16 - drive mounting screws
    8 - backplane mounting screws
    1 - quick start guide
