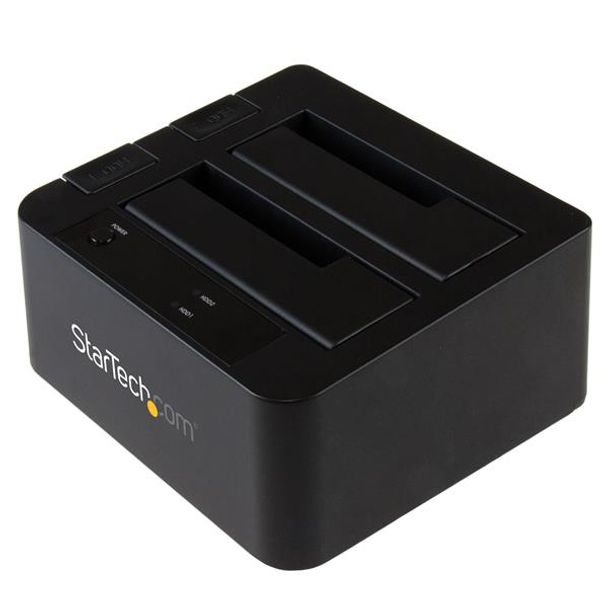

StarTech SDOCK2U313 2-bay USB 3.1 SATA dock with UASP - Tool-free & trayless
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
Get unprecedented performance and storage capacity with this USB 3.1 Gen 2 (10 Gbps) dual-drive docking station. It supports both 2.5ö and 3.5ö form factor solid-state and hard drives, with a high capacity storage capability of 12TB (6TB per drive).Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.Top-loading design for easy drive access
It's never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.Convenient compatibilityThe dual-drive docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5ö or 3.5ö IDE hard drive into a SATA hard drive dock.The SDOCK2U313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specification
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) Female |
| Environmental | |
| Humidity | 20% ~ 80% RH |
| Operating Temperature | 5 C to 35 C (35 F to 95 F) |
| Storage Temperature | -20 C to 50 C (-4 F to 122 F) |
| Hardware | |
| Bus Type | USB 3.1 Gen 2 |
| Chipset ID | ASMedia - ASM1352R |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Fan(s) | No |
| Interface | USB 3.1 Gen 2 |
| Number of 2.5 inch bays | 2 |
| Number of Drives | 2 |
| Number of internal 3.5 inch bays | 2 |
| Indicators | |
| LED Indicators | HDD Activity |
| Power | |
| Packaging Information | |
| Package Height | 12 cm [4.7 in] |
| Package Length | 21 cm [8.3 in] |
| Package Width | 19 cm [7.5 in] |
| Shipping (Package) Weight | 980 g [34.6 oz] |
| Performance | |
| 4Kn Support | Yes |
| Max Drive Capacity | Currently tested with hard drives up to 6TB at 7200 RPM |
| Maximum Data Transfer Rate | 10 Gbps |
| TRIM Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.1 Gen 2 - 10 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 7 cm [2.8 in] |
| Product Length | 13.2 cm [5.2 in] |
| Product Width | 14.8 cm [5.8 in] |
| Weight of Product | 502 g [17.7 oz] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.3A |
| Input Voltage | 100 - 240 AC |
| Output Current | 3000 mA |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 36 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Power Adapter Plugs (NA/EU/UK/AUS) |
| Quick Install Guide | |
| Universal Power Adapter - 49.5 inches (cable) | |
| USB 3.1 A-to-B Cable - 41 inches | |
| USB 3.1 Dual-drive HDD Dock | |
| GTIN | 065030861663 |
|---|
