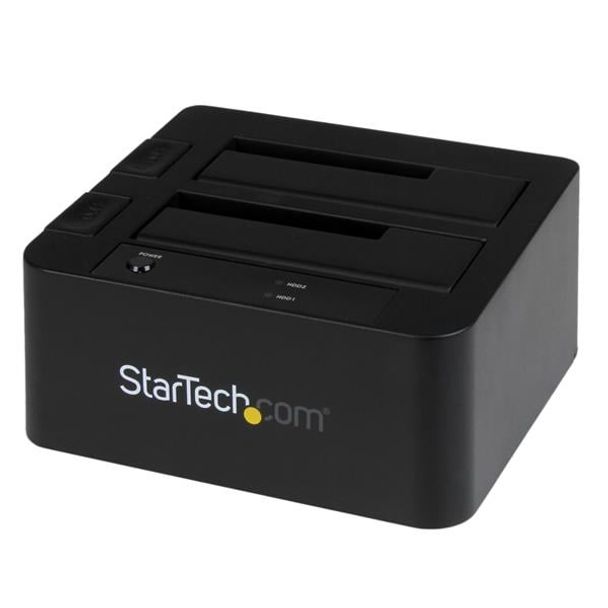

StarTech SDOCK2U33EB USB 3.0/eSATA Dual HDD/SSD Dock w/ UASP

Model
SDOCK2U33EB
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$167.90
USB 3.0 / eSATA Dual Hard Drive Docking Station with UASP for 2.5/3.5in SATA SSD / HDD A USB 3.0 Dual Hard Drive Dock with UASP for SATA6 Gbps drives - USB 3.5 or eSATA HDD Dock

The SDOCK2U33EB Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap hard drives from your desktop or laptop computer simultaneously using a single eSATA or USB port.

For fast performance and efficient data transfers when connected through eSATA, the docking station supports full SATA III transfer speeds -- up to 6 Gbps. For universal compatibility, the dock can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which supports performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.

The hard drive docking station supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), ensuring you can save time by getting the most out of your drive performance.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCK2U33EB supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The SDOCK2U33EB is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

Applications

  • System builders and I.T. specialists who need quick access to drives for imaging
  • Backup data quickly to an external drive for archiving
  • Transferring data from one hard drive to another
  • Technicians who test or benchmark multiple hard drives
  • Backup important data and easily take the drive to an offsite location for safekeeping



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Chipset ID JMicron - JMS562
  Compatible Drive Types SATA
  Drive Installation Removable
  Drive Size 2.5in & 3.5in
  Interface USB 3.0 & eSATA
  Number of Drives 2
PERFORMANCE
  Insertion Rating 15,000 Cycles
  Max Drive Capacity Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)
  Port Multiplier Yes
  Type and Rate USB 3.0 - 5 Gbit/s
    SATA III (6 Gbps)
  UASP Support Yes
CONNECTOR(S)
  Drive Connectors 2 - SATA Data & Power Combo (7+15 pin) Receptacle
  Host Connectors 1 - eSATA (7 pin, Data) Female
    1 - USB Type-B (9 pin) USB 3.0 Female
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
INDICATORS
  LED Indicators 1 - Power
    1 - Drive 1 Activity
    1 - Drive 2 Activity
POWER
  Input Current 1.5 A
  Input Voltage 100 ~ 240 AC
  Output Current 3.0 A
  Output Voltage 12 DC
  Plug Type M
  Power Consumption (In Watts) 36
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 20%RH~80%RH
  Operating Temperature 5°C to 35°C (41°F to 95°F)
  Storage Temperature -20°C to 50°C (-4°F to 122°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Plastic
  Product Height 2.8 in [70 mm]
  Product Length 5.6 in [143 mm]
  Product Weight 18.5 oz [524 g]
  Product Width 5.2 in [132 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 2.4 lb [1.1 kg]
WHAT'S IN THE BOX
  Included in Package 1 - USB 3.0/eSATA to Dual 2.5/3.5in SATA Hard Drive Docking Station
    1 - USB 3.0 Cable
    1 - eSATA Cable
    1 - Universal Power Adapter (NA,EU,UK,ANZ)
    1 - Instruction Manual
More Information
GTIN065030855891
