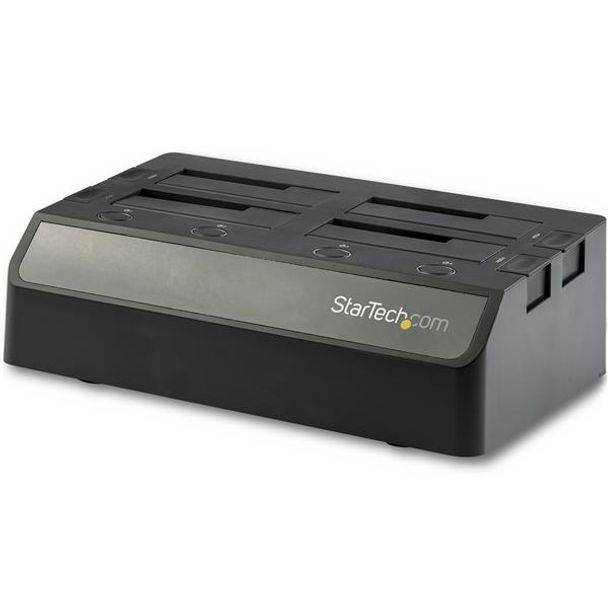

Startech SDOCK4U313 4 Bay SATA HDD / SSD Docking Station

Model
SDOCK4U313
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$358.00
4 Bay SATA HDD Docking Station - For 2.5in / 3.5in SSD / HDD - USB 3.1 (10Gbps) - USB-C / USB-A - Hard Drive Docking Station

This 4-bay SATA HDD docking station lets you access up to four solid-state drives or hard drives simultaneously over USB 3.1 (10Gbps), and hot swap drives with ease. Ideal for IT professionals, the docking station provides large data capacity and fast file transfers, helping you manage your workflow more efficiently.

Save time accessing and managing your data

When you’re managing a large number of drives, the HDD/SSD docking station saves you time. Quickly dock and swap your drives for disk imaging, data recovery from failing drives, data backups, or other tasks.

The hard drive docking station also has SMART support, for accessing important drive information such as hours in use, number of power cycles, and disk health.

Fast data transfers

With USB 3.1 Gen 2, the HDD docking station lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Convenient compatibility

The hard drive docking station includes a USB Type-C cable, for connecting to USB-C equipped laptops and devices, and a USB Type-A cable, for backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.

The docking station also works with 2.5” and 3.5” IDE hard drives, mSATA drives and M.2 drives using a compatible StarTech.com adapter:

IDE hard drives:  Use StarTech.com adapter SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

mSATA drives: Use StarTech.com adapter SAT32MSAT257 mSATA SSD to 2.5in SATA Adapter Converter

M.2 drives: Use StarTech.com adapter SAT32M225 M.2 NGFF SSD to 2.5in SATA Adapter Converter

The SDOCK4U313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Perfect for system builders and IT professionals who need quick access to drives for imaging
  • Quickly recover and backup data from an old drive
  • Transfer data from one hard drive to another
  • Convenient for technicians who test or benchmark multiple hard drives


Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type USB 3.1 Gen 2
  Chipset ID VIA Labs - VL820
VIA Labs - VL715
  Compatible Drive Types SATA
  Drive Installation Removable
  Drive Size 2.5in & 3.5in
  Fan Bearing Type Sleeve Bearing
  Fan(s) Yes
  Fans 2 - 60 mm
  Interface USB 3.1 Gen 2
  Number of Drives 4
PERFORMANCE
  4Kn Support Yes
  Hot Swap Capability Yes
  Insertion Rating 10000
  Max Drive Capacity Tested up to 10TB
  Maximum Data Transfer Rate 10Gbps
  MTBF 30000 hours
  Noise Level 19.04 dBA
  S.M.A.R.T. Support Yes
  TRIM Support Yes
  Type and Rate USB 3.1 Gen 2 - 10 Gbit/s
    SATA III (6 Gbps)
  UASP Support Yes
CONNECTOR(S)
  Drive Connectors 4 - 22 pin SATA Data & Power Combo Receptacle
  Host Connectors 1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Female
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
SPECIAL NOTES / REQUIREMENTS
  Note Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.
INDICATORS
  LED Indicators 4 - Power
    4 - Activity
POWER
  Input Current 2.0A
  Input Voltage 100 - 240 AC
  Output Current 6500mA
  Output Voltage 12V DC
  Plug Type 4-pin DIN
  Power Consumption (In Watts) 78
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 20% ~ 80% RH
  Operating Temperature 5°C to 35°C (41°F to 95°F)
  Storage Temperature -20°C to 50°C (-4°F to 122°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Material Plastic
  Product Height 3.4 in [8.7 cm]
  Product Length 11.5 in [29.1 cm]
  Product Width 6.7 in [17.1 cm]
  Weight of Product 2.2 lb [1 kg]
PACKAGING INFORMATION
  Package Height 10.6 in [27 cm]
  Package Length 15.1 in [38.3 cm]
  Package Width 7.7 in [19.5 cm]
  Shipping (Package) Weight 5.3 lb [2.4 kg]
WHAT'S IN THE BOX
  Included in Package 1 - docking station
    1 - 3.3 ft [1 m] USB 3.1 (Type-C) cable
    1 - 3.3 ft [1 m] USB 3.1 (Type-A) cable
    1 - universal power adapter (NA/JP, UK, EU, ANZ)
    1 - quick-start guide
