StarTech SDOCKU313E USB 3.1 (10GBPS) / ESATA SINGLE-BAY DOCK

Model
SDOCKU313E
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$135.00
DRIVE DOCKING STATION FOR 2.5 / 3.5IN SATA DRIVES - USB 3.1 (USB-A USB-C) OR ESATA

Connect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.

Supports USB 3.1 Gen 2 and eSATA for flexible use

Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.

You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.

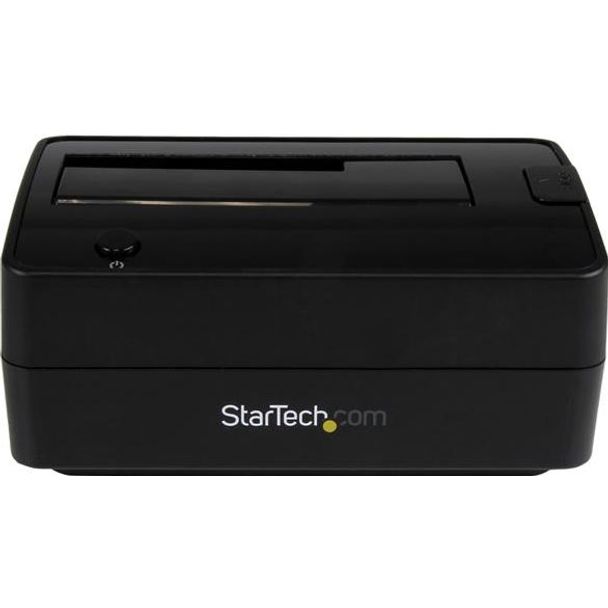

Top-loading design for easy drive access

The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.

Convenient compatibility

The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.

The docking station is also UASP compatible, for enhanced performance.

The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Get quick access to drives, ideal for system builders and IT professionals
  • Back up data quickly to an archive drive
  • Easily take backup data to an offsite location for safekeeping



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type USB 3.1 Gen 2 & eSATA
  Chipset ID ASMedia - ASM1351
  Compatible Drive Types SATA
  Drive Installation Removable
  Drive Size 2.5in & 3.5in
  Fan(s) No
  Interface USB 3.1 Gen 2
    eSATA
  Number of Drives 1
PERFORMANCE
  4Kn Support Yes
  Hot Swap Capability Yes
  Max Drive Capacity Currently tested with hard drives up to 6TB at 7200 RPM
  TRIM Support Yes
  Type and Rate USB 3.1 Gen 2 - 10 Gbit/s
    SATA III (6 Gbps)
  UASP Support Yes
CONNECTOR(S)
  Drive Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle
  Host Connectors 1 - USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) Female
    1 - eSATA (7 pin, Data) Female
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
INDICATORS
  LED Indicators 1 - Power & Activity
POWER
  Center Tip Polarity Positive
  Input Current 0.6 A
  Input Voltage 110V-240V AC
  Output Current 2.0 A
  Output Voltage 12 DC
  Plug Type M
  Power Consumption (In Watts) 24
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 20% ~ 80% RH
  Operating Temperature 5°C to 35°C (41°F to 95°F)
  Storage Temperature -20°C to 50°C (-4°F to 122°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Plastic
  Product Height 2.5 in [63.4 mm]
  Product Length 5.7 in [145 mm]
  Product Weight 14.5 oz [410 g]
  Product Width 3.7 in [93 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 30.4 oz [862 g]
WHAT'S IN THE BOX
  Included in Package 1 - USB 3.1 & eSATA HDD/SSD docking station
    1 - universal power adapter (NA/JP, EU, UK, ANZ)
    1 - 3.3 ft. [1 m] USB-A to USB-B cable
    1 - 3.3 ft. [1 m] USB-C to USB-B cable
    1 - 3.3 ft. [1 m] eSATA cable
    1 - quick-start guide
