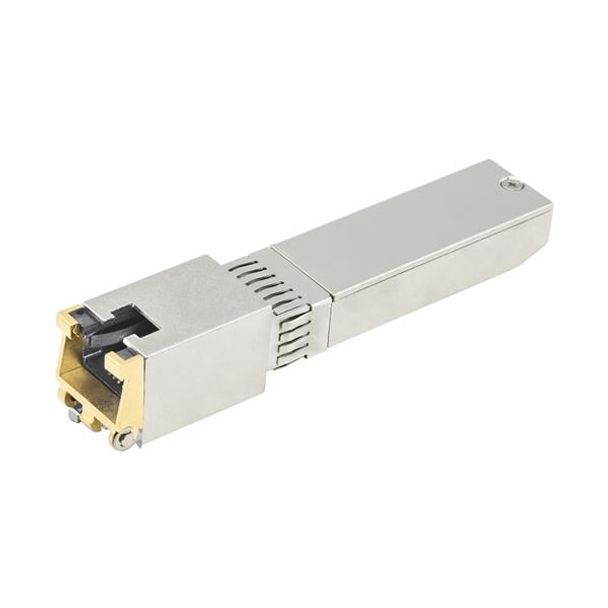

StarTech SFP10GBTST 10GBase-T SFP+ Transceiver -10G Copper

Model
SFP10GBTST
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$396.80
MSA Compliant 10GBase-T SFP+ - 10 Gigabit RJ45 Copper SFP+ Transceiver Module - 30m - TAA Compliant 10G SFP+ - MSA Compliant 10GBase-T SFP+ - 10 Gigabit Copper SFP+ - 30 m - TAA Compliant 10G SFP+ - L

The SFP10GBTST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.

Technical Specifications:
    • Maximum Data Transfer Rate: 10 Gbps
    • Type: Copper
    • Connection Type: RJ45 Connector
    • Maximum Transfer Distance: 30 m (98.4 ft.)
    • MTBF: 4,598,430 hours
DDM:
     No >

This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Applications

  • Replace defective or damaged SFP+ modules
  • Expand your network to remote segments



Technical Specifications

WARRANTY INFORMATION
  Warranty Lifetime
HARDWARE
  Compatible Brand MSA Compliant
  Industry Standards IEEE 802.3an 10GBASE-T
    IEEE 802.3an 10GBASE-T
PERFORMANCE
  Auto MDIX Yes
  Compatible Networks 10 Gbps
  DDM No
  Fiber Operating Mode Full-Duplex
  Max Transfer Distance 30 m (98.4 ft)
  Maximum Data Transfer Rate 10 Gbps
  MTBF 4,598,430 hours
  Type Copper
CONNECTOR(S)
  Local Unit Connectors 1 - RJ-45 Female
SPECIAL NOTES / REQUIREMENTS
  System and Cable Requirements MSA compliant SFP+ port
POWER
  Power Consumption (In Watts) 2.3 W (max.)
ENVIRONMENTAL
  Humidity 5~95% RH
  Operating Temperature 0°C to 70°C (32°F to 158°F)
  Storage Temperature -40°C to 85°C (-40°F to 185°F)
PHYSICAL CHARACTERISTICS
  Color Silver
  Enclosure Type Zinc Alloy
  Product Height 0.5 in [12.6 mm]
  Product Length 2.8 in [70 mm]
  Product Weight 1 oz [28 g]
  Product Width 0.5 in [13.9 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 2.1 oz [60 g]
WHAT'S IN THE BOX
  Included in Package 1 - SFP+ transceiver
