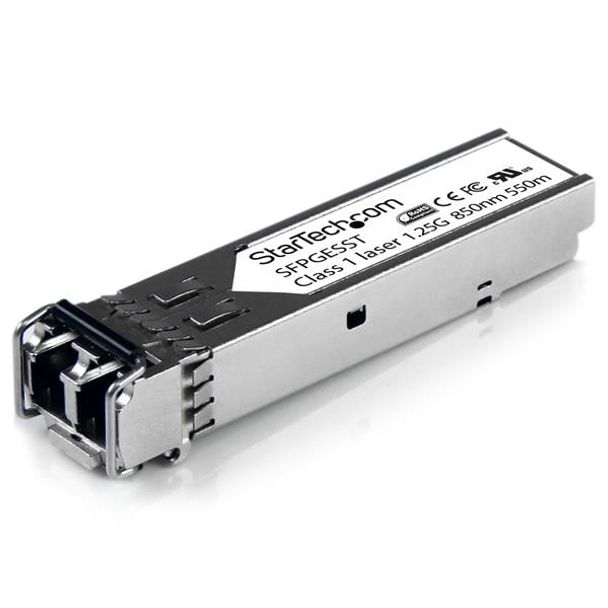

StarTech SFPGESST Gb Fiber SFP Transceiver MM LC

Model
SFPGESST
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$62.00
Cisco Compatible Gigabit Fiber SFP Transceiver Module MM LCw/ DDM 550m (Mini-GBIC) - 850nm 1000Base-SX Multimode SFPFiber Module

The SFPGESST is a Cisco SFP-GE-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Technical Specifications:

  • Wavelength: 850nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Multi Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 550 m (1804 ft)
  • MTBF: 3,381,761 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Applications

  • Replacing defective or damaged SFP modules in Cisco switches and routers
  • Expand your network to remote segments



Technical Specifications

WARRANTY INFORMATION
  Warranty Lifetime
HARDWARE
  Compatible Brand Cisco
  Industry Standards IEEE 802.3z 1000BASE-SX
  WDM No
PERFORMANCE
  Compatible Networks 1000 Mbps (1 Gbps)
  DDM Yes
  Fiber Operating Mode Half/Full-Duplex
  Max Transfer Distance 550 m (1804 ft)
  Maximum Data Transfer Rate 1.25 Gbps
  MTBF 3,381,761 hours
  Type Multi Mode
  Wavelength 850nm
CONNECTOR(S)
  Local Unit Connectors 1 - Fiber Optic LC Duplex Female
SPECIAL NOTES / REQUIREMENTS
  Note For use in Gigabit fiber networking equipment and media converters
  System and Cable Requirements MSA or Cisco compliant SFP port
POWER
  Power Consumption (In Watts) < 1 W
ENVIRONMENTAL
  Humidity 30~70% RH
  Operating Temperature 0°C to 70°C (32°F to 158°F)
  Storage Temperature -40°C to 85°C (-40°F to 85°F)
PHYSICAL CHARACTERISTICS
  Product Height 0.4 in [10 mm]
  Product Length 2.4 in [60 mm]
  Product Weight 0.6 oz [17 g]
  Product Width 0.5 in [12 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 3.4 oz [95 g]
WHAT'S IN THE BOX
  Included in Package 1 - 1.25 Gbps Multimode LC SFP
