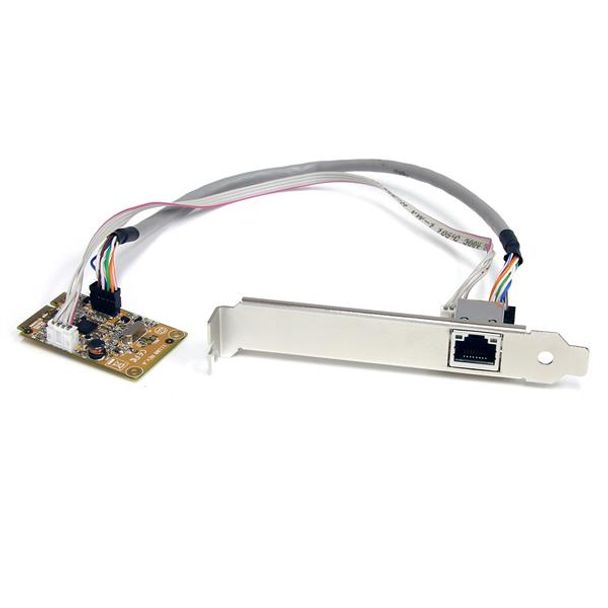

StarTech ST1000SMPEX Mini PCIe Gigabit Network Adapter Card

Model
ST1000SMPEX
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$59.00
Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.

Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Add a Gigabit networking port to a small form factor mini-ITX system with a mini PCI Express slot
  • Add a Gigabit networking port to a Mini-ITX system through mini PCIe instead of taking up the full PCIe slot
  • Replacement for a failed built-in Gigabit Ethernet port



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type Mini PCI Express
  Card Type Embedded
  Chipset ID Realtek - RTL8111E
  Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
  Interface RJ45 (Gigabit Ethernet)
  Ports 1
PERFORMANCE
  Auto MDIX Yes
  Compatible Networks 10/100/1000 Mbps
  Full Duplex Support Yes
  MTBF 482765 Hours
  Promiscuous Mode Yes
CONNECTOR(S)
  Connector Type(s) 1 - Mini PCI Express x1 (52 pin) Male
  External Ports 1 - RJ-45 Female
SOFTWARE
  OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.4.x and 10.5.x
Linux 2.4.x to 4.11.x LTS Versions Only
SPECIAL NOTES / REQUIREMENTS
  System and Cable Requirements Available mini PCI Express slot and expansion card slot
INDICATORS
  LED Indicators 1 - Activity
    1 - Link
ENVIRONMENTAL
  Humidity 5% ~ 95% RH
  Operating Temperature 0°C to 55°C (32°F to 131°F)
  Storage Temperature -20°C to 85°C (-4°F to 185°F)
PHYSICAL CHARACTERISTICS
  Product Height 0.3 in [8 mm]
  Product Length 2 in [51 mm]
  Product Weight 0.2 oz [6 g]
  Product Width 1.2 in [30 mm]
PACKAGING INFORMATION
  Package Quantity 1
  Shipping (Package) Weight 5.3 oz [150 g]
WHAT'S IN THE BOX
  Included in Package 1 - Mini PCIe Card
    1 - RJ45 Daughter Board
    1 - Low Profile Bracket
    1 - Driver CD
    1 - Instruction Manual
More Information
GTIN065030846554
