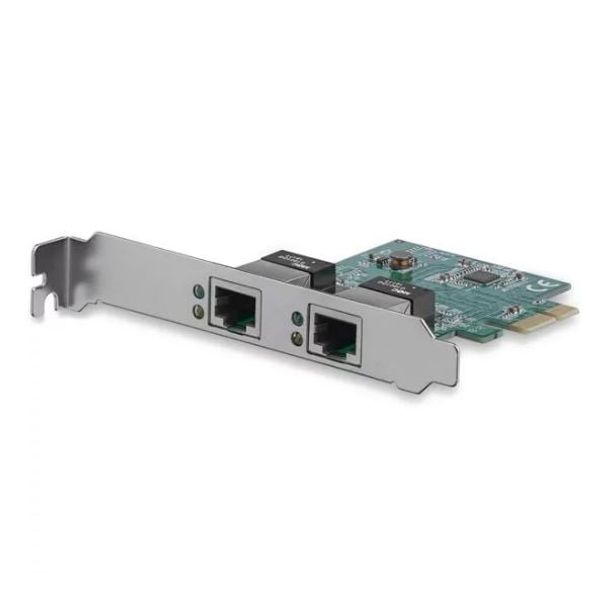

StarTech ST1000SPEXD4 2 Port Gigabit PCI Express Network Card

Model
ST1000SPEXD4
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$169.00
Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe Gigabit NIC - 1 Gbps Dual Port Server Adapter - Dual Port Network Card - 2 Port Ethernet Card - PCIe Dual NIC Card

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.

Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.

The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Ideal for VM environments with multiple operating systems, requiring shared or dedicated NICs
  • Provide redundant connectivity to ensure an uninterrupted network connection
  • Configure a dual-homed proxy or gateway system for an added layer of security
  • Specially designed for desktop PC clients, servers, and workstations with few PCI Express slots available



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type PCI Express
  Card Type Standard Profile (LP bracket incl.)
  Chipset ID Realtek - RTL8111H
ASMedia - ASM1182E
  Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
    PCI Express Base Specification 2.0
  Interface RJ45 (Gigabit Ethernet)
  Port Style Integrated on Card
  Ports 2
PERFORMANCE
  Auto MDIX Yes
  Compatible Networks 10/100/1000 Mbps
  Full Duplex Support Yes
  Jumbo Frame Support 9K max.
  Maximum Data Transfer Rate 2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
  Promiscuous Mode Yes
  Supported Protocols IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
CONNECTOR(S)
  Connector Type(s) 1 - PCI Express x1 Male
  External Ports 2 - RJ-45 Female
SOFTWARE
  OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.4 to 10.9
Linux 2.4.x to 4.11.x LTS Versions only
SPECIAL NOTES / REQUIREMENTS
  System and Cable Requirements Available PCI Express slot
INDICATORS
  LED Indicators 2 - Green - Link/Activity
    2 - Yellow - Gigabit Mode
ENVIRONMENTAL
  Humidity 10~90% RH
  Operating Temperature 0°C to 70°C (32°F to 158°F)
  Storage Temperature 0°C to 100°C (32°F to 212°F)
PHYSICAL CHARACTERISTICS
  Product Height 4.7 in [120 mm]
  Product Length 3.6 in [92.6 mm]
  Product Weight 1.9 oz [53 g]
  Product Width 0.7 in [18 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 5 oz [142 g]
WHAT'S IN THE BOX
  Included in Package 1 - PCIe Network Card
    1 - Low Profile Bracket
    1 - Driver CD
    1 - Instruction Manual
