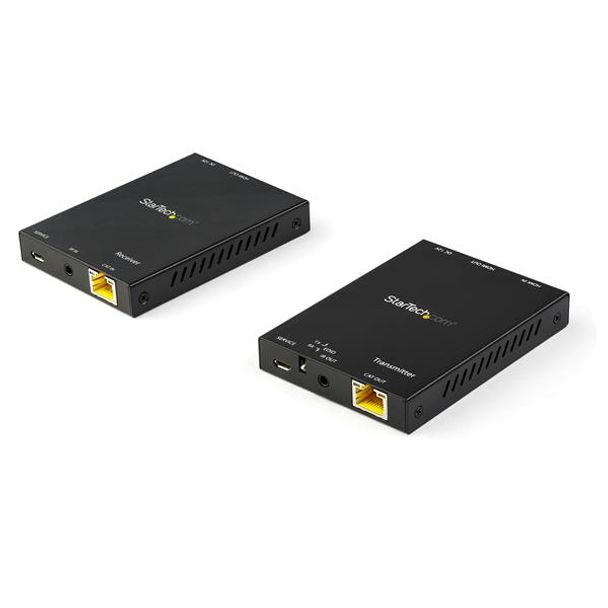

StarTech ST121HD20V Extender - HDMI to CAT6 Converter

Model
ST121HD20V
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$246.70
HDMI over CAT6 Extender Kit - 4K 60Hz - HDMI Balun Kit - Signal up to 50 m / 165 ft - HDR - 4:4:4 - 7.1 Audio Support

This HDMI over CAT6 extender lets you transmit your 4K 60Hz signal up to 165 ft. (50 m) over a single CAT6 cable. The extender supports High Dynamic Range (HDR), providing high contrast images with enhanced video.

Astonishing 4K Picture Quality

This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) resolution, providing four times the picture quality of high-definition (1080p). The extender supports HDMI 2.0 capabilities, offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture that's ideal for delivering video content. With HDR support, you can enjoy increased contrast, color brightness and greater luminosity in your images.

Long-Distance Transmission

Extend an HDMI signal to up to 165 ft. (50 m) with the HDMI to CAT6 converter. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.

Compatible with HDCP 2.2 Devices

Connect your HDMI 2.0 devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.

ST121HD20V is backed by 2-year StarTech.com warranty with free lifetime technical support.

Applications

  • Extend your HDMI signal in classrooms and boardrooms
  • Use existing CAT6 infrastructure to create digital signage
  • Distribute an HDMI signal to multiple displays at tradeshows
  • Extend your HDMI signals to locations that lack power outlets


Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Audio Yes
  AV Input HDMI
  AV Output HDMI
  Cabling Cat 6 UTP
PERFORMANCE
  Audio Specifications 7.1 Surround Sound
  Max Distance 50 m / 165 ft
  Maximum Cable Length 165 ft [50.3 m]
  Maximum Digital Resolutions 3840 x 2160 (4K) @ 60 Hz
  Supported Resolutions 3840x2160 (4K) 60Hz
2560x1600 60Hz
1920x1200 60Hz
1920x1080 (1080p) 60Hz
1280x720 (720p) 60Hz

**Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
  Wide Screen Supported Yes
CONNECTOR(S)
  Connector A 1 - HDMI (19 pin) Female
    1 - RJ-45 Female
  Connector B 1 - HDMI (19 pin) Female
    1 - RJ-45 Female
POWER
  Center Tip Polarity Positive
  Input Current 0.3A
  Input Voltage 110V-240V AC
  Output Current 1A
  Output Voltage 12 DC
  Plug Type M
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 0% - 80 % RH (non-condensing)
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Product Height 0.5 in [1.3 cm]
  Product Length 3.8 in [97 mm]
  Product Width 2.8 in [70 mm]
  Weight of Product 5.5 oz [156 g]
PACKAGING INFORMATION
  Package Height 2.8 in [70 mm]
  Package Length 8.7 in [22 cm]
  Package Width 5.1 in [13 cm]
  Shipping (Package) Weight 27.4 oz [777 g]
WHAT'S IN THE BOX
  Included in Package 1 - HDMI over CAT6 Transmitter
    1 - HDMI over CAT6 Receiver
    1 - IR Blaster
    1 - IR Receiver
    2 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
    1 - Quick-Start Guide

More Information
GTIN065030880084
