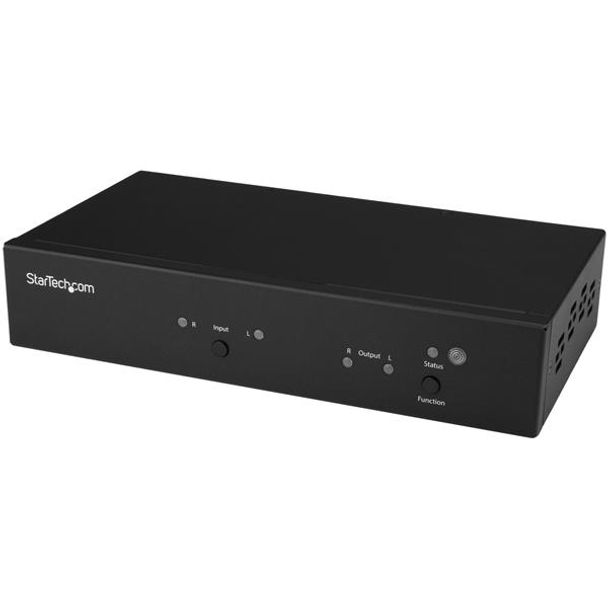

StarTech ST121HDBTPW HDMI CAT5e/CAT6 Extender w/Power Cable
Model
ST121HDBTPW
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$757.00
HDMI Over CAT5e/CAT6 Extender with Power Over Cable 330 ft (100m)
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Audio | Yes | |
| Cabling | Cat 5e UTP or better | |
| Daisy-Chain | Yes | |
| Ports | 1 | |
| Rack-Mountable | Yes | |
| PERFORMANCE | ||
| Audio Specifications | 7.1 Surround Sound | |
| Max Distance | 70 m / 230 ft | |
| Maximum Cable Length | 229.6 ft [70 m] | |
| Maximum Digital Resolutions | 4096 x 2160 (4K) @ 30 Hz | |
| Supported Resolutions | 4k x 2K (Ultra HD) @ 30 Hz 2560x1600 @ 60 Hz 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
|
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Local Unit Connectors | 1 - HDMI (19 pin) Female Input | |
| 1 - HDMI (19 pin) Female Output | ||
| 2 - 3.5 mm Mini-Jack (3 Position) Female Input | ||
| 1 - 3.5 mm Mini-Jack (3 Position) Output | ||
| 1 - RJ-45 Female Input | ||
| 1 - RJ-45 Female Output | ||
| 1 - DB 9-pin Serial Female | ||
| INDICATORS | ||
| LED Indicators | 2 - input selection LEDs | |
| 2 - output selection LEDs | ||
| 1 - status LED | ||
| POWER | ||
| Center Tip Polarity | Positive | |
| Input Voltage | 100 ~ 240 AC | |
| Output Current | 1.5 A | |
| Output Voltage | 12 DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 18 | |
| Power Source | AC Adapter Included | |
| ENVIRONMENTAL | ||
| Humidity | 0% - 80 % RH (non-condensing) | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Color | Black | |
| Product Height | 1.7 in [43 mm] | |
| Product Length | 8.7 in [220 mm] | |
| Product Weight | 32.8 oz [930 g] | |
| Product Width | 4.6 in [117 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 3.7 lb [1.7 kg] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - HDBase-T repeater | |
| 1 - IR remote control | ||
| 1 - universal power adapter (NA / UK / EU / AU) | ||
| 1 - CAT5 cable | ||
| 1 - mounting kit | ||
| 1 - screw kit | ||
| 1 - rubber foot pad set | ||
| 1 - quick start guide | ||
| AV Input | HDMI | |
| GTIN | 065030854177 |
|---|
