StarTech ST121UTP VGA VIDEO Extender OVER CAT5

SKU
ADA-VGA-ST121UT
Model
ST121UTP
Add to Compare
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$228.00
VGA VIDEO EXTENDER OVER CAT5 (ST121 SERIES)
StarTech
065030791236
Add to Wish List

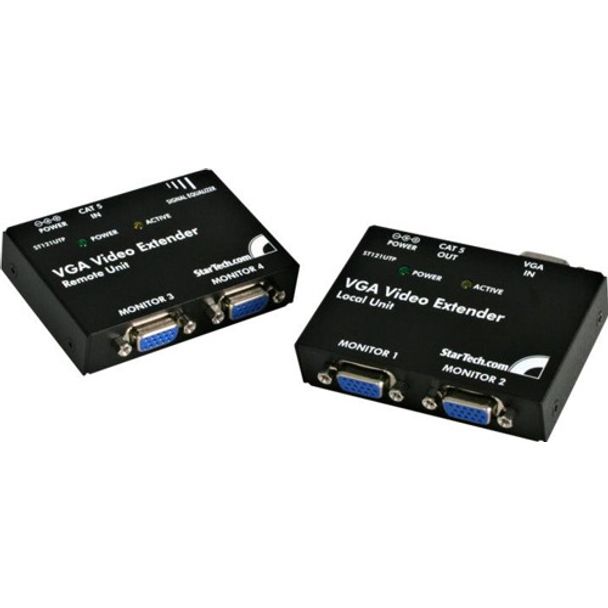

The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required.

The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total.

The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall, desk or cabinet.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Applications

  • Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
  • Ideal for digital signage applications in financial, educational, and business sectors
  • Extend your display across harsh environment industrial sites
  • Perfect for video conferencing solutions in boardrooms and office settings
  • Optimize placement of your demo stations at tradeshows and in auditoriums


Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Audio No
  Cabling Cat 5e UTP or better
  Daisy-Chain No
  Ports 1
PERFORMANCE
  Max Distance 150 m / 500 ft
  Supported Resolutions 1440x900 @ 150ft / 50m
1280x1024 @ 300ft / 100m
1024x768 @ 500ft / 150m
CONNECTOR(S)
  Local Unit Connectors 1 - RJ-45 Female
    1 - VGA (15 pin, High Density D-Sub) Male
    2 - VGA (15 pin, High Density D-Sub) Female
  Remote Unit Connectors 1 - RJ-45 Female
    2 - VGA (15 pin, High Density D-Sub) Female
POWER
  Center Tip Polarity Positive
  Output Current 0.6A
  Output Voltage 9 DC
  Plug Type M
  Power Consumption (In Watts) 5.4
  Power Source AC Adapter Included
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Aluminum
  Product Height 0.8 in [20 mm]
  Product Length 2.4 in [60 mm]
  Product Weight 11.8 oz [335 g]
  Product Width 3.3 in [83 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 26.8 oz [760 g]
WHAT'S IN THE BOX
  Included in Package 1 - Local VGA Extender Unit
    1 - Remote VGA Extender Unit
    1 - Mounting Bracket for Receiver (w/ screws)
    2 - Sets Rubber Feet
    2 - Power Adapter
    1 - Instruction Manual
