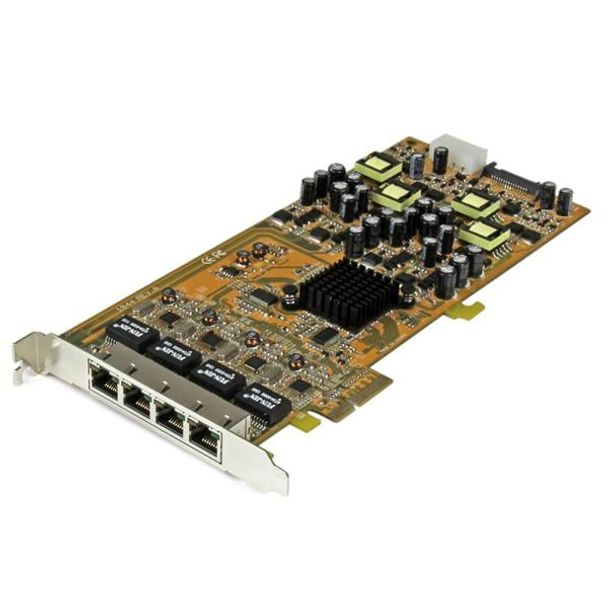

Startech ST4000PEXPSE 4 Port Gigabit PoE PCIe Network Card

Model
ST4000PEXPSE
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$623.60
4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC - PCI Express GbE Quad Port NIC - PoE Card - 4 Port Network Card

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.

The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.

Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Create a host computer for networked security cameras situated in remote areas, where standard power connection is not possible
  • Install PoE-powered Wireless Access Points (WAP) or repeaters in industrial, warehousing or business environments
  • Enable remote installation of touchscreens or information kiosks

Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type PCI Express
  Card Type Standard Profile
  Chipset ID Realtek - RTL8111E
  Industry Standards IEEE 802.3at, 802.3af, 802.3, 802.3u, 802.3ab, 802.3az Draft 2.2 Energy-Efficient Ethernet (EEE), 802.1q VLAN tagging, 802.1p Layer 2 Priority Encoding and 802.3x Full Duplex Flow Control
  Interface RJ45 (Gigabit Ethernet)
  Port Style Integrated on Card
  Ports 4
PERFORMANCE
  Auto MDIX Yes
  Buffer Size 48 KB
  Compatible Networks 10/100/1000 Mbps
  Full Duplex Support Yes
  Jumbo Frame Support 9K max.
  Maximum Data Transfer Rate 2000 Mbps (Full-duplex)
  Promiscuous Mode Yes
CONNECTOR(S)
  Connector Type(s) 1 - PCI Express x4 Male
  External Ports 4 - RJ-45 Female
  Internal Ports 1 - LP4 (4 pin; Large Drive Power) Male
    1 - SATA Power (15 pin) Plug
SOFTWARE
  OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Linux 2.4.x to 4.11.x LTS Versions Only
SPECIAL NOTES / REQUIREMENTS
  Patents and Licenses The following patents are licensed for this product. This list might not be all inclusive.
• United States Patent No. 5,406,260 (expired)
• United States Patent No. 6,650,622
• United States Patent No. 7,457,250
• United States Patent No. 8,155,012
• United States Patent No. 8,902,760
• United States Patent No. 8,942,107
• United States Patent No. 9,019,838
• United States Patent No. 9,049,019
• United States Patent Application No. 14/695,456
• United States Patent Application No. 14/726,940
  System and Cable Requirements Available full height (standard profile) PCI Express expansion slot
    Available LP4 Molex or SATA power connector
INDICATORS
  LED Indicators 4 - Link/ Activity (green)
    4 - PoE Active (yellow)
POWER
  Output Voltage 48 DC
ENVIRONMENTAL
  Humidity 10~90% RH (Non-condensing)
  Operating Temperature 0°C to 55°C (32°F to 131°F)
  Storage Temperature -40°C to 75°C (-40°F to 158°F)
PHYSICAL CHARACTERISTICS
  Product Height 4.7 in [12 cm]
  Product Length 9.6 in [24.3 cm]
  Product Width 0.7 in [18 mm]
  Weight of Product 3.6 oz [102 g]
PACKAGING INFORMATION
  Package Height 2.6 in [66 mm]
  Package Length 11.7 in [29.6 cm]
  Package Width 7.4 in [18.8 cm]
  Shipping (Package) Weight 15.1 oz [428 g]
WHAT'S IN THE BOX
  Included in Package 1 - PCI Express Network Card
    1 - Driver CD
    1 - Instruction Manual
More Information
GTIN065030855150
