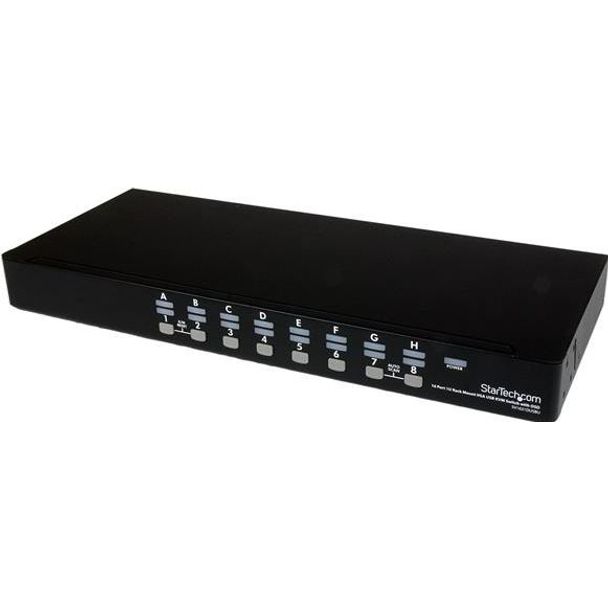

StarTech SV1631DUSBUK 16 Port 1U Rackmount USB KVM Switch Kit

Model
SV1631DUSBUK
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$1,285.00
16 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables

The SV1631DUSBUK 16 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 16 servers or PCs right out of the box, making setup convenient and simple.

The USB KVM delivers a dependable computer management tool that allows you to control up to 16 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.

A suitable addition to server room operations, the 16-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 136 computers from this single switch.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Applications

  • Effectively manage your server farms from a single console
  • Useful in Software QA labs where testing is being done across multiple platforms
  • Great for PC test/burn-in computer control, avoiding the cost of buying additional peripherals
  • Central control for multiple systems in a Datacenter
  • Systems management in Co-location/ISP facilities
  • Manufacturing line computer control and management



Technical Specifications

WARRANTY INFORMATION
  Warranty 3 Years
HARDWARE
  Audio No
  Cables Included Yes
  Daisy-Chain Yes
  KVM Ports 16
  Number of Monitors Supported 1
  PC Interface USB
  PC Video Type VGA
  Rack-Mountable Yes
PERFORMANCE
  Hot-Key Selection Yes
  IP Control No
  Maximum Analog Resolutions 1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen)
  Maximum Cascaded Computers 136
  Maximum Number of Users 1
  MTBF 158000 hours
  On-Screen Display Yes
  Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display)
  Wide Screen Supported Yes
CONNECTOR(S)
  Console Interface(s) 1 - VGA (15 pin, High Density D-Sub) Female
    2 - USB Type-A (4 pin) USB 2.0 Female
  Host Connectors 16 - VGA (15 pin, High Density D-Sub) Female
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
INDICATORS
  LED Indicators 1 - Green - Power
    16 - Green - PC Online
    16 - Red - PC Selected
POWER
  Center Tip Polarity Positive
  Input Voltage 110V-240V AC
  Output Current 1A
  Output Voltage 9 DC
  Power Consumption (In Watts) 9
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 0~80% RH
  Operating Temperature 5°C to 40°C (41°F to 104°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Steel
  Product Depth 7.5 in [190 mm]
  Product Height 1.8 in [45 mm]
  Product Weight 5.3 lb [2.4 kg]
  Product Width 17.3 in [440 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 13.4 lb [6.1 kg]
WHAT'S IN THE BOX
  Included in Package 1 - 16-port USB KVM switch
    2 - mounting brackets
    16 - 6ft 2-in-1 USB VGA KVM cables
    1 - screw kit
    4 - foot pads
    1 - universal power adapter (NA/EU/UK/AU)
    1 - instruction manual
More Information
GTIN065030840828
