Startech SV211DPUA4K KVM Switch DisplayPort 4k 60Hz
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | In Stock |

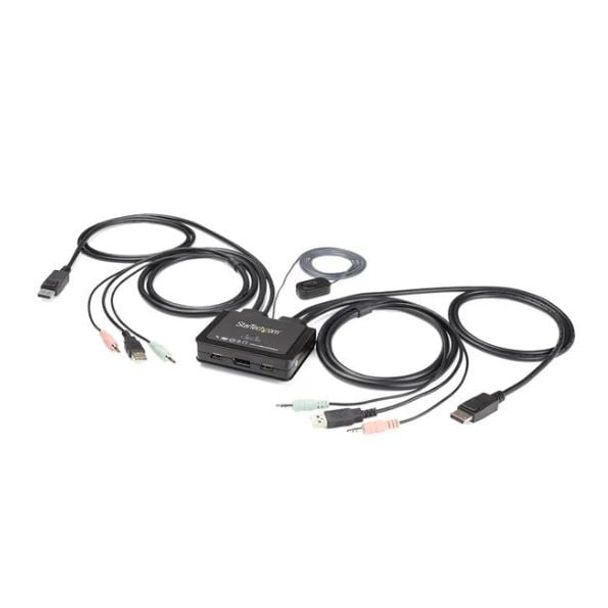

The SV211DPUA4K 2-Port 4K60Hz DisplayPort® Cable KVM Switch with Audio and Remote Switching Control gives you control of two DisplayPort, USB equipped computers with a single monitor, keyboard, mouse and audio peripheral set.
4K60 Picture & Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for separate 3.5 mm stereo audio, the KVM switch delivers full audio compatibility across connected computers.
OS Independent
While supporting most PC operating systems, this DP KVM switch is OS independent which means it works with Mac computers (an adapter may be required) and any other laptops, notebooks, and tablets.
Simple to Operate
The switch features a remote push-button on a 1.5 meter (4ft) integrated cable that can be placed in an easily accessible location, as well as keyboard hot-keys, and PC or Mac® compatible software for switching between systems.
StarTech.com KVM Switches & Consoles
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.
The SV211DPUA4K is backed by a 2-year StarTech.com warranty and free lifetime multilingual technical support.
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Audio | Yes | |
| Cables Included | Yes | |
| Daisy-Chain | No | |
| KVM Ports | 2 | |
| Number of Monitors Supported | 1 | |
| PC Interface | USB | |
| PC Video Type | DisplayPort | |
| Rack-Mountable | No | |
| PERFORMANCE | ||
| Audio Specifications | Two Channel Audio Input and Output | |
| Auto Scan | 10, 20, 30, 40, 50, and 60 seconds | |
| Hot-Key Selection | Yes | |
| IP Control | No | |
| Maximum Digital Resolutions | 3840 x 2160 (Ultra HD 4K) @ 60hz | |
| MTBF | 1,012,884 hours | |
| On-Screen Display | No | |
| Port Selection Support | Push Button, Hotkeys, and Software | |
| Video Revision | DisplayPort 1.2 | |
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Console Interface(s) | 2 - USB Type-A (4 pin) USB 2.0 Receptacle Input | |
| 1 - DisplayPort (20 pin) Receptacle Input | ||
| 2 - 3.5 mm Mini-Jack (3 Position) Female Receptacle Input | ||
| Host Connectors | 2 - USB Type-A (4 pin) USB 2.0 Plug Output | |
| 2 - DisplayPort (20 pin) Plug Output | ||
| 4 - 3.5 mm Mini-Jack (3 Position) Female Plug Output | ||
| SOFTWARE | ||
| OS Compatibility | Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2016, 2019 Mac OS 10.6 to 10.9 |
|
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | In order to access the software and hotkeys of the KVMs, a compatible OS must be installed on the connected host, however the KVM and push button switching functions are OS independent. | |
| INDICATORS | ||
| LED Indicators | 2 - Orange | |
| POWER | ||
| Power Source | Bus Powered | |
| ENVIRONMENTAL | ||
| Humidity | 0 ~ 90% RH, Non-Condensing | |
| Operating Temperature | 0 ~ 40C | |
| Storage Temperature | -20 ~ 60C | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 4 ft [1.2 m] | |
| Color | Black | |
| Material | Plastic | |
| Product Height | 0.4 in [0.9 cm] | |
| Product Length | 3.8 in [97 mm] | |
| Product Width | 3.2 in [82.2 mm] | |
| Weight of Product | 12.4 oz [350 g] | |
| PACKAGING INFORMATION | ||
| Package Height | 6.3 in [16 cm] | |
| Package Length | 8.3 in [210 mm] | |
| Package Width | 2.4 in [6 cm] | |
| Shipping (Package) Weight | 3.5 oz [100 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - KVM Switch | |
| 1 - Quick-Start Guide | ||
| GTIN | 065030882156 |
|---|
