Startech SV211HDUC 2 Port USB-C Alt-Mode Compact KVM Switch
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |

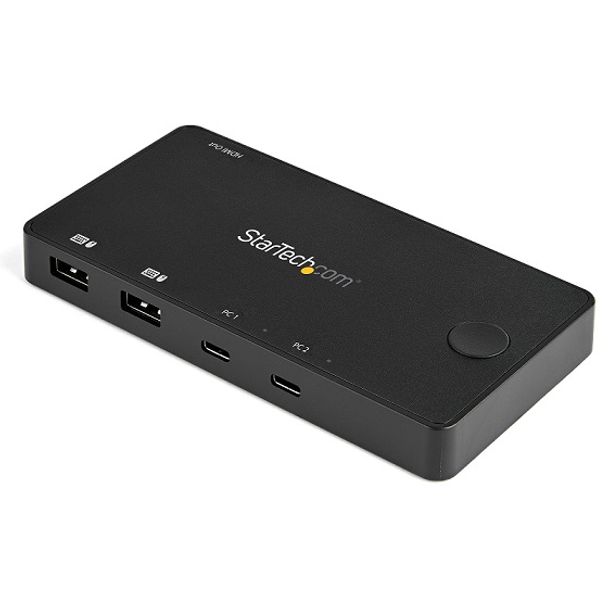

This 2-port USB-C™ KVM enables you to easily switch between two USB Type-C or Thunderbolt™ 3 desktop or laptop computers, using a single keyboard, HDMI® monitor and mouse.
Easy to Setup and Use
Utilizing USB-C with DP alt-mode, this compact KVM switch only requires a single cable be connected to each of your computers, ensuring a small footprint with limited cabling requirements. All required cables for connecting your computers are included, to ensure a hassle-free setup right out of the box.
For easy operation, the KVM features a single button that toggles between connected computers.
Supports 4K 60Hz Resolutions
The USB-C KVM switch supports UHD resolutions up to 4K (3840x2160) at 60Hz and can drive one large HDMI 2.0 display with ease, maximizing viewing space.
Compact and Portable
Along with the USB-C design that ensures cabling requires are minimum the KVM is bus powered further reducing clutter by avoiding the need for a bulky power adapter. The lightweight small form factor makes this mini KVM switch easy to deploy and is ideal for mobile/hot desk workforces.
Guaranteed Compatibility
The KVM is OS independent supporting all operating systems including Windows, Linux, macOS, iPadOS (Apple iPad Pro) and Android. StarTech.com has rigorously tested this product to ensure compatibility with all popular device brands including: Dell, HP, Apple and Lenovo.
The SV211HDUC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Warranty Information | Warranty | 2 Years |
|---|---|---|
| Connector(s) | Console Interface(s) | 2 - USB Type-A (4 pin) USB 2.0 |
| Host Connectors | 2 - USB Type-C (24-pin) USB 2.0 (480Mbps) | |
| Console Interface(s) | 1 - HDMI (19 pin) | |
| Environmental | Operating Temperature | 5°C ~ 35°C |
| Storage Temperature | -20°C ~ 50°C | |
| Humidity | 20%RH ~ 80%RH | |
| Hardware | Audio | Yes |
| KVM Ports | 2 | |
| PC Interface | USB-C | |
| PC Video Type | USB-C (DP Alt-Mode) | |
| Number of Monitors Supported | 1 | |
| Rack-Mountable | No | |
| Cables Included | Yes | |
| Chipset ID | Parade - PS176 | |
| VLI - VL170 | ||
| Terminus - FE1.1S | ||
| Daisy-Chain | No | |
| Indicators | LED Indicators | 1 - Functional Display |
| 2 - Port selection or active host | ||
| Packaging Information | Package Height | 3.3 in [85 mm] |
| Package Length | 4.7 in [12 cm] | |
| Shipping (Package) Weight | 1.2 lb [0.6 kg] | |
| Package Width | 6.8 in [17.2 cm] | |
| Performance | On-Screen Display | No |
| Video Revision | DisplayPort 1.2 | |
| HDMI 2.0 | ||
| IP Control | No | |
| Hot-Key Selection | No | |
| Maximum Data Transfer Rate | 480Mbps | |
| Wide Screen Supported | Yes | |
| Audio Specifications | HDMI - 7.1 Channel Audio | |
| Port Selection Support | Push Button | |
| MTBF | 50,000 hours | |
| Physical Characteristics | Color | Black |
| Product Height | 0.6 in [1.6 cm] | |
| Product Length | 2.8 in [7.2 cm] | |
| Weight of Product | 9.3 oz [265 g] | |
| Product Width | 5.5 in [140 mm] | |
| Material | Plastic | |
| Power | Power Source | Bus Powered |
| Special Notes / Requirements | System and Cable Requirements | Your USB-C ports must support DisplayPort over USB-C (DP Alt mode) in order to work with this KVM switch |
| What's in the Box | Included in Package | 1 - KVM Switch |
| 2 - 3.3 ft. [1 m] USB-C Cables | ||
| 1 - Quick-Start Guide |
| GTIN | 0065030882170 |
|---|
